SPECIFICATIONS

Brand Name: Auloda

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: other

Camera Mount Type: Fixed Camera Mount

Camera Mount Type: other

Controller Battery: No include

Origin: Mainland China

Takeoff Weight: 250g

Aerial Photography: No

Control Channels: 8 CHANNELS

Transit Time (Days): 5 minutes

Flight Time: <5

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Anti-wind Ability: No

Hign-concerned Chemical: None

Is Electric: No battery

Material: Carbon Fiber

Material: Plastic

Material: Metal

Drone Weight: 200g

Remote Distance: 1000 meters

Package Includes: Original Box

Package Includes: Operating Instructions

Remote Control: Yes

State of Assembly: Ready-to-Go

Barcode: No

Type: HELICOPTER

Features: other

Dimensions: 2.5inch

Certification: CE

Warning: Does not contain any batteries

Warranty: 1 month

Model Number: GEPRC Cinebot25 Analog Quadcopter

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Operator Skill Level: expert

Equipped with Aerosol Spray System/Equipment Capacity: No

Motor: Brushless Motor

Charging Time: 30 minutes

Plugs Type: XT30

Power Source: Electric

Please note:！！！

This link is GEPRC Cinebot25 Analog Version Series

Cinebot25 launches two series, namely Cinebot25 Common version and Cinebot25 S（sports） version. The differences are:

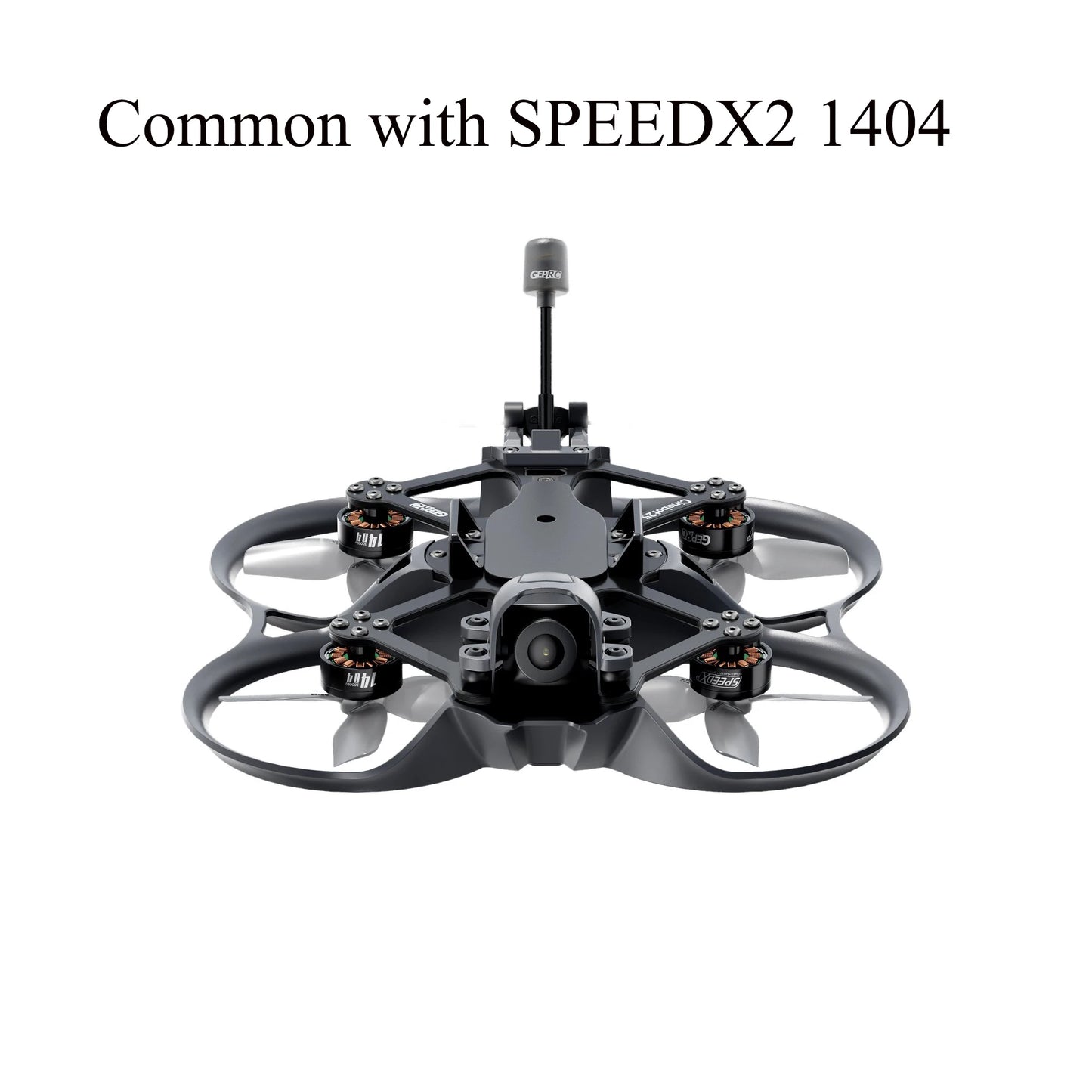

Cinebot25 Common version:Compatible with SPEEDX2 1404 4600KV motor,PNP version equipped with LiHV 4S 720mAhbattery weighs less than 250 grams,It iseligible for FAA fight criterion

Cinebot25 S Version:compatible with SPEEDX2 1505 4300KV motor the boosted power will exceed your expectations

Please note: This product does not contain any batteries, remote control, glasses

Only one drone (receivers for ELRS 2.4G and TBS options are already welded on the drone)

Please note: The latest version has been upgraded to TAKER G4 45A 8Bit AIO version, and the old version AIO has been completely discontinued！！

Please note: The latest version has been upgraded to TAKER G4 45A 8Bit AIO version, and the old version AIO has been completely discontinued！！

Summary

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

Cinebot 25 comes with two different options for the power version. They are the regular version with the SPEEDX2 1404 motor and the S(sport) version with the SPEEDX2 1505 motor.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A 8Bit AIO FC that will breathe new life into the footage-shooting experience.

Feature

Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.

The shock-absorbing protection cover of the camera provides better stability for footage shooting.

Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.

The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.

Optimized silicone T-shaped antenna fixing component.

Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g.

Equipped with the new TAKER G4 45A 8Bit AIO, the G4 main controller ensures stable flight computations, while its integrated 8Bit 45A ESC boasts robust over-current capability.

The customized fixing stand of the receiver simplifies the internal space.

Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

1.Cinebot25 S Analog Quadcopter Specifications

Model: Cinebot25 S Analog Quadcopter

Frame: GEP-CT25 Black

Wheelbase: 115mm

FC: TAKER G4 45A AIO

MCU: STM32G473CEU6

Gyro: ICM 42688-P

FC firmware: TAKERG4AIO

ESC: 45A 8Bit ESC

Motor: SPEEDX2 1505 4300KV

Propellers: HQprop DT63mm x4

Connector: XT30

VTX: RAD mini 5.8G 1W

Camera: CADDX Ratel 2

Antenna: Peano 5.8G RHCP UFL

Receiver: PNP/ELRS2.4G / TBS NanoRX

Weight: Cinebot25 S Analog PNP version 170g+1g

Recommended battery: LiHV 4S 660mAh-720mAh

Flight Time：5′-8’（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

Cinebot25 S Analog Quadcopter Includes

1 x Cinebot25 quadcopter

1 x HQprop DT63mmx4 propeller（pack）

2 x Battery anti-slip pads

1 x 15150mm battery strap

1 x 15*180mm battery strap

1 x Naked GoPro base

1 x Reserved screw pack

1 x L-shaped screwdriver 1.5mm

1 x Frequency paring pointer

1 x Damping ball puncher

Reserved screw pack includes

Reserved screw pack includes：

2 x Camera damping balls

4 x M2 nuts

6 x M2*6 button head screws

4 x M2*18 button head screws

4 x M1.6*8 Round Head screws with collar

4 x M2*5 button head screws

4 x M1.6*10 allen screws

2 x M2*12 button head screws

2 x M2 self-clinching nuts

2 x T-shaped antenna fixing silicones

2.Cinebot25 Common Analog Quadcopter Specifications

Model: Cinebot25 Analog Quadcopter

Frame: GEP-CT25 Grey

Wheelbase: 115mm

FC: TAKER G4 45A AIO

MCU: STM32G473CEU6

Gyro: ICM 42688-P

FC firmware: TAKERG4AIO

ESC: 45A 8Bit ESC

Motor: SPEEDX2 1404 4600KV

Propellers: HQprop DT63mm x4

Connector: XT30

VTX: RAD mini 5.8G 1W

Camera: CADDX Ratel 2

Antenna: Peano 5.8G RHCP UFL

Receiver: PNP/ ELRS2.4G / TBS NanoRX

Weight: Cinebot25 Analog PNP version 160g±1g

Recommended battery: LiHV 4S 660mAh-720mAh

Flight Time：5′-8’（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

Cinebot25 Common Analog Quadcopter Includes

1 x Cinebot25 quadcopter

1 x HQprop DT63mmx4 propeller（pack）

2 x Battery anti-slip pads

1 x 15150mm battery strap

1 x 15*180mm battery strap

1 x Naked GoPro base

1 x Reserved screw pack

1 x L-shaped screwdriver 1.5mm

1 x Frequency paring pointer

1 x Damping ball puncher

Reserved screw pack includes

2 x Camera damping balls

4 x M2 nuts

6 x M2*6 button head screws

4 x M2*18 button head screws

4 x M1.6*8 Round Head screws with collar

4 x M2*5 button head screws

4 x M1.6*10 allen screws

2 x M2*12 button head screws

2 x M2 self-clinching nuts

2 x T-shaped antenna fixing silicones
