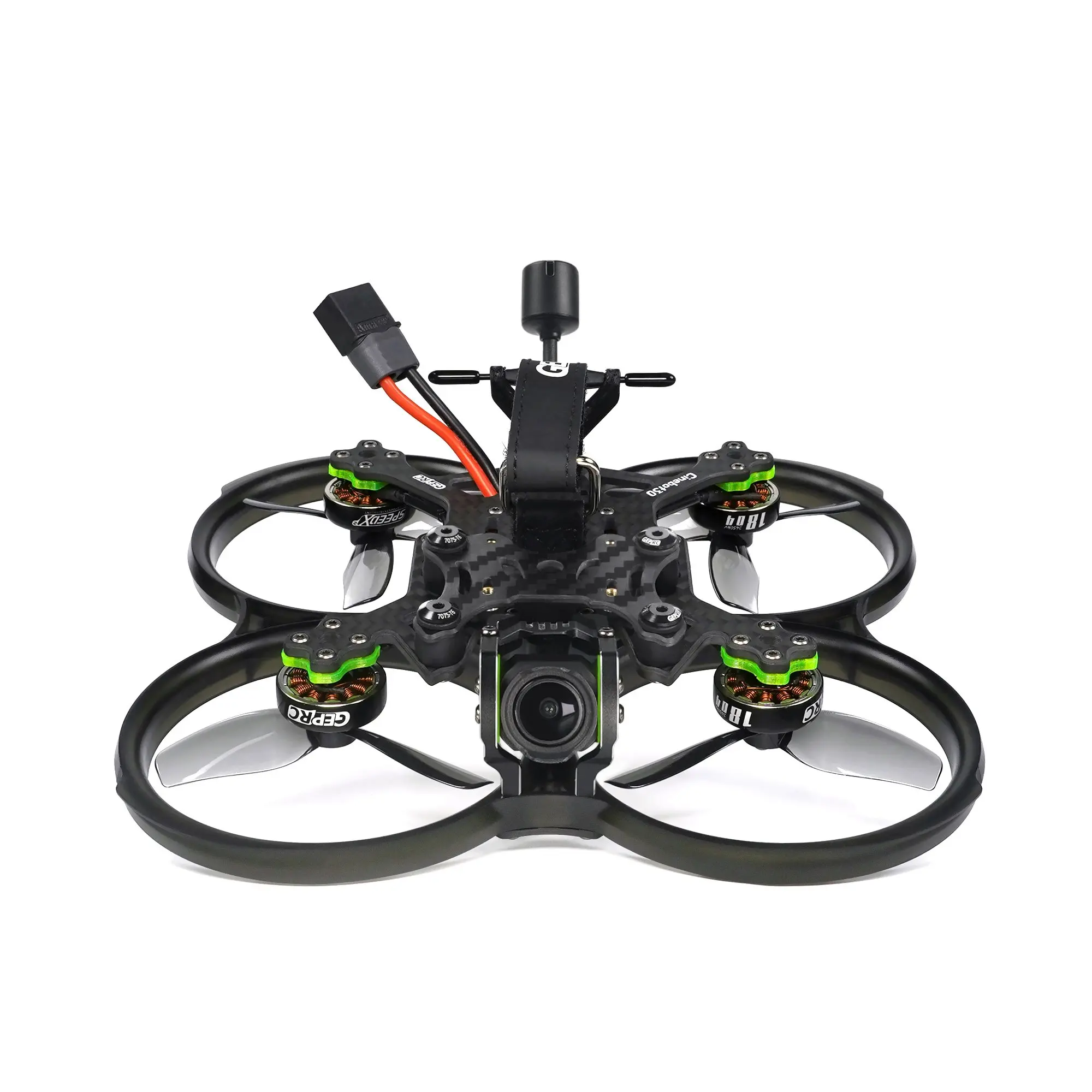

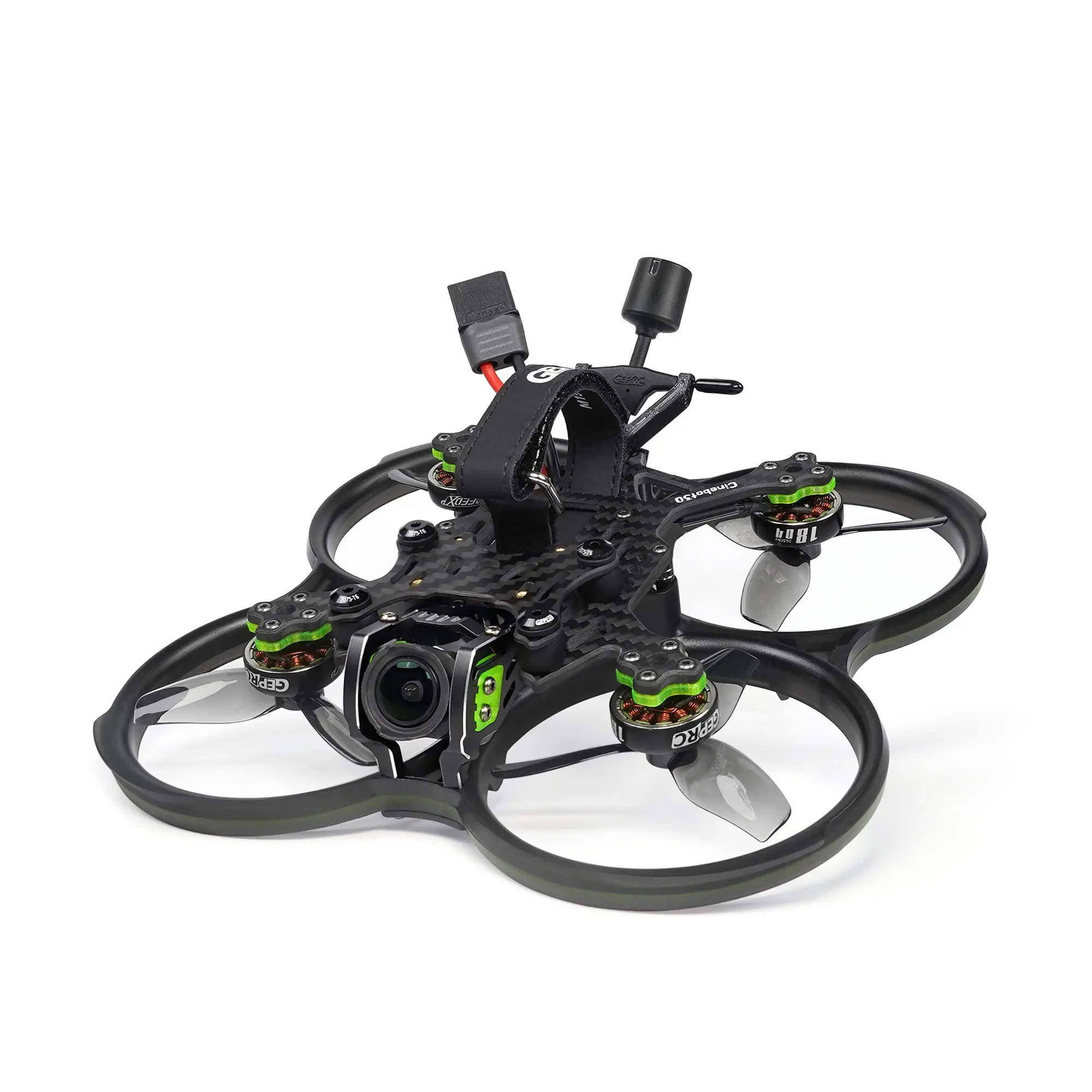

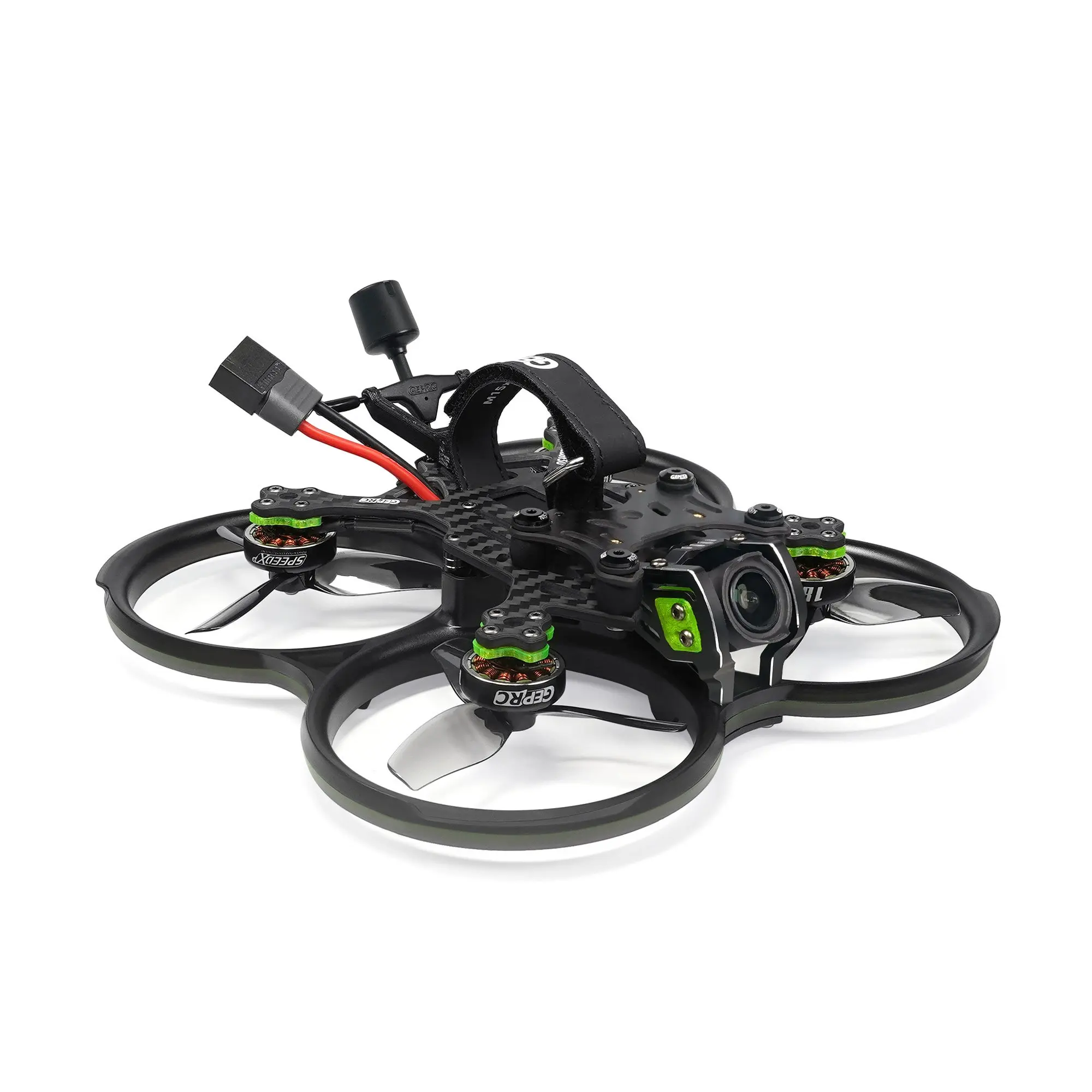

GEPRC Cinebot30 HD O3 FPV Drone Cinewhoop DJI O3 Air Unit F722 45A GR1804 HQProp T76mm For RC FPV Quadcopter Professional Drone
GEPRC Cinebot30 HD O3 FPV Drone Cinewhoop DJI O3 Air Unit F722 45A GR1804 HQProp T76mm For RC FPV Quadcopter Professional Drone
SPECIFICATIONS
Brand Name: GEPRC
Remote Distance: 2000 meters
Remote Control: Yes
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Video Capture Resolution: 2K QHD
Video Capture Resolution: 4K UHD
Controller Battery: Not include
Aerial Photography: Yes
Control Channels: 8 CHANNELS
Material: Metal
Material: Plastic
Material: Carbon Fiber
Origin: Mainland China
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 12+y
Recommend Age: 14+y
Dimensions: 3 inch
Motor: Brushless Motor
Plugs Type: XT60
Type: HELICOPTER
State of Assembly: Ready-to-Go
Features: App-Controlled
Features: FPV Capable
Features: Integrated Camera
Features: other
Indoor/Outdoor Use: Indoor-Outdoor
Charging Voltage: 14.8V
Charging Time: 30 minutes
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: other
Warning: Minors please use under the supervision of an adult
Certification: CE
CE: Certificate
Flight Time: 8-12 minutes
Model Number: GEPRC Cinebot30 HD O3 FPV Drone
Power Source: Electric
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: expert
Summary
Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage.

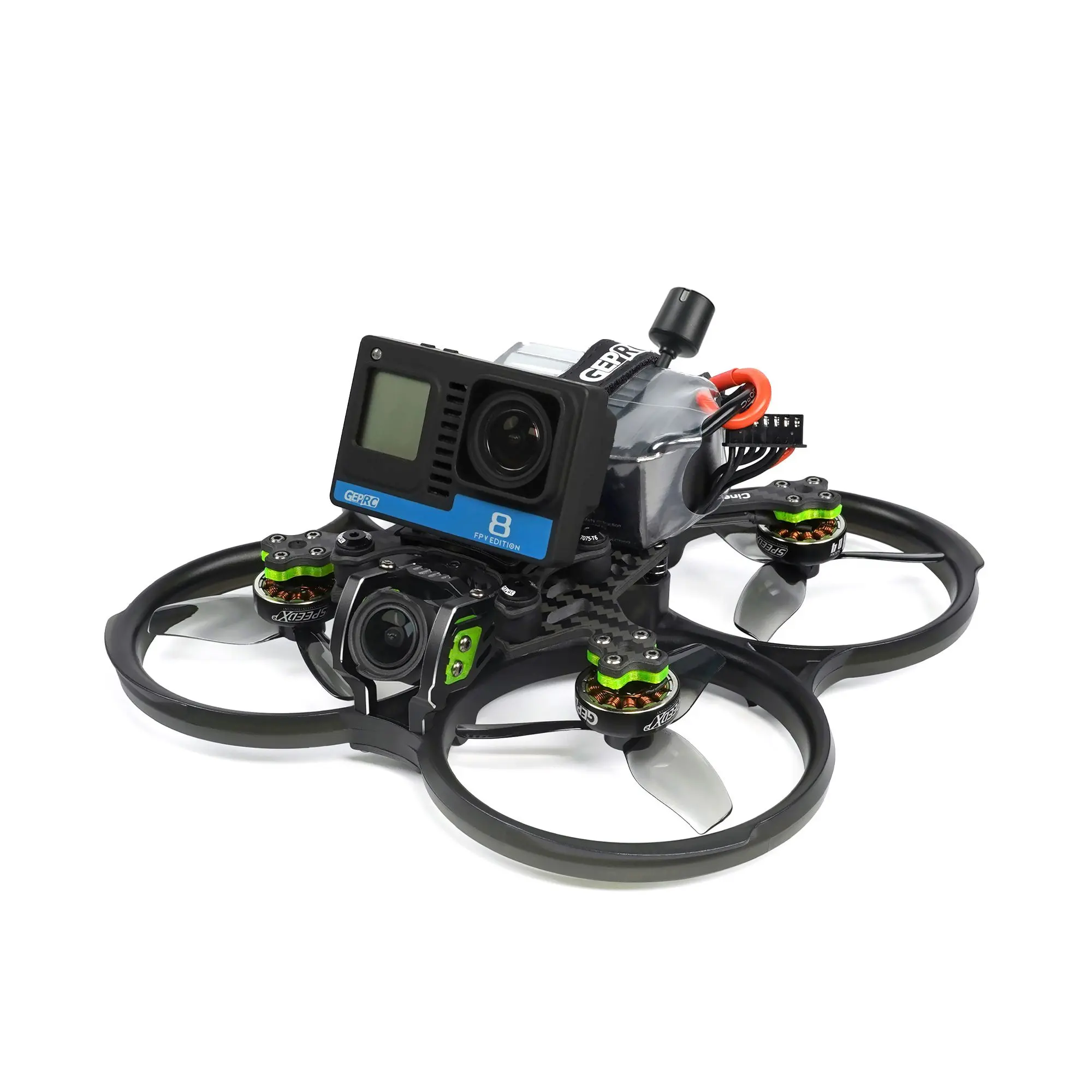

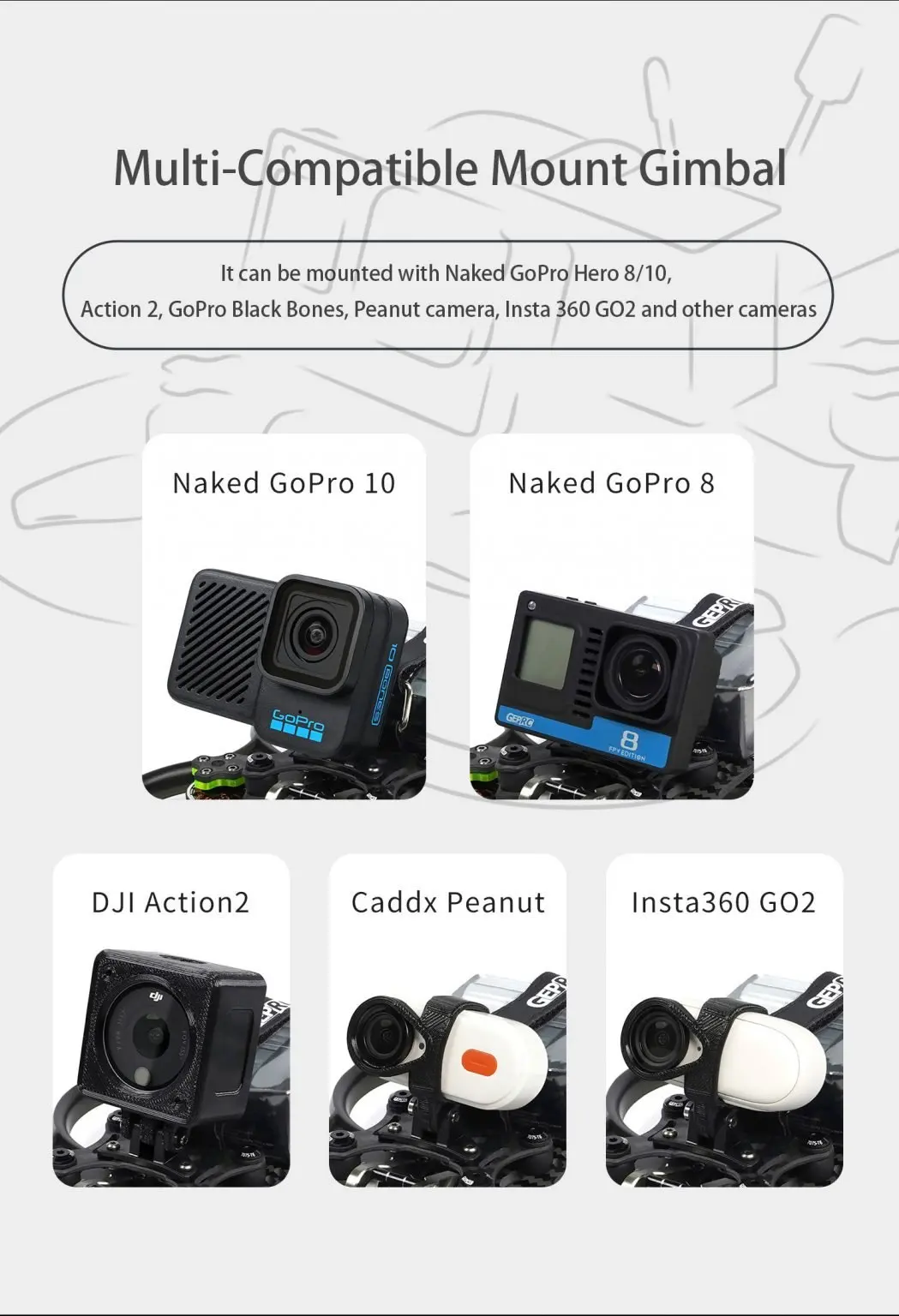

Cinebot30 is a new generation of Cinematic FPV drone developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2 and other cameras. The image is stable and clear, and it’s easy to film.

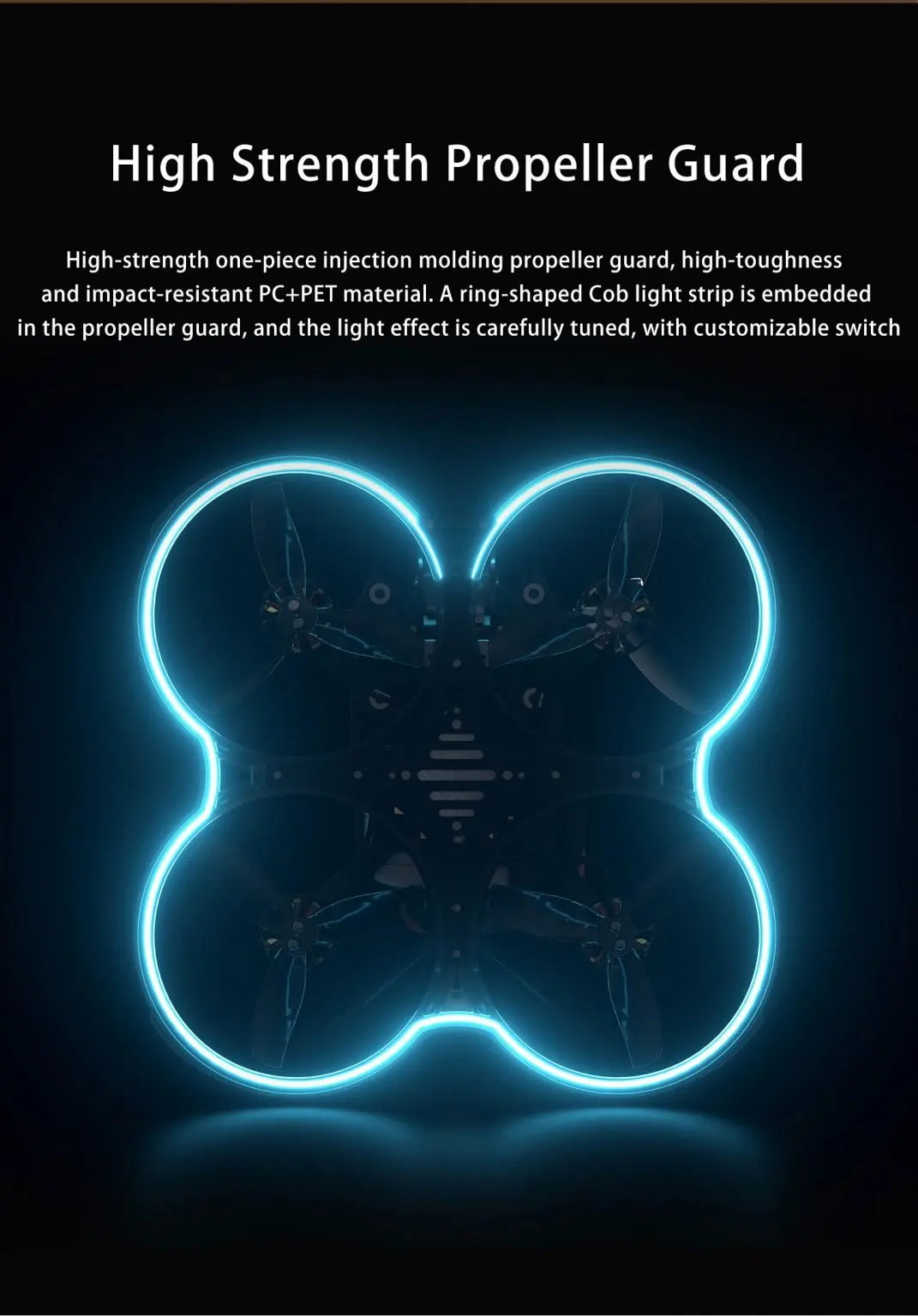

Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!

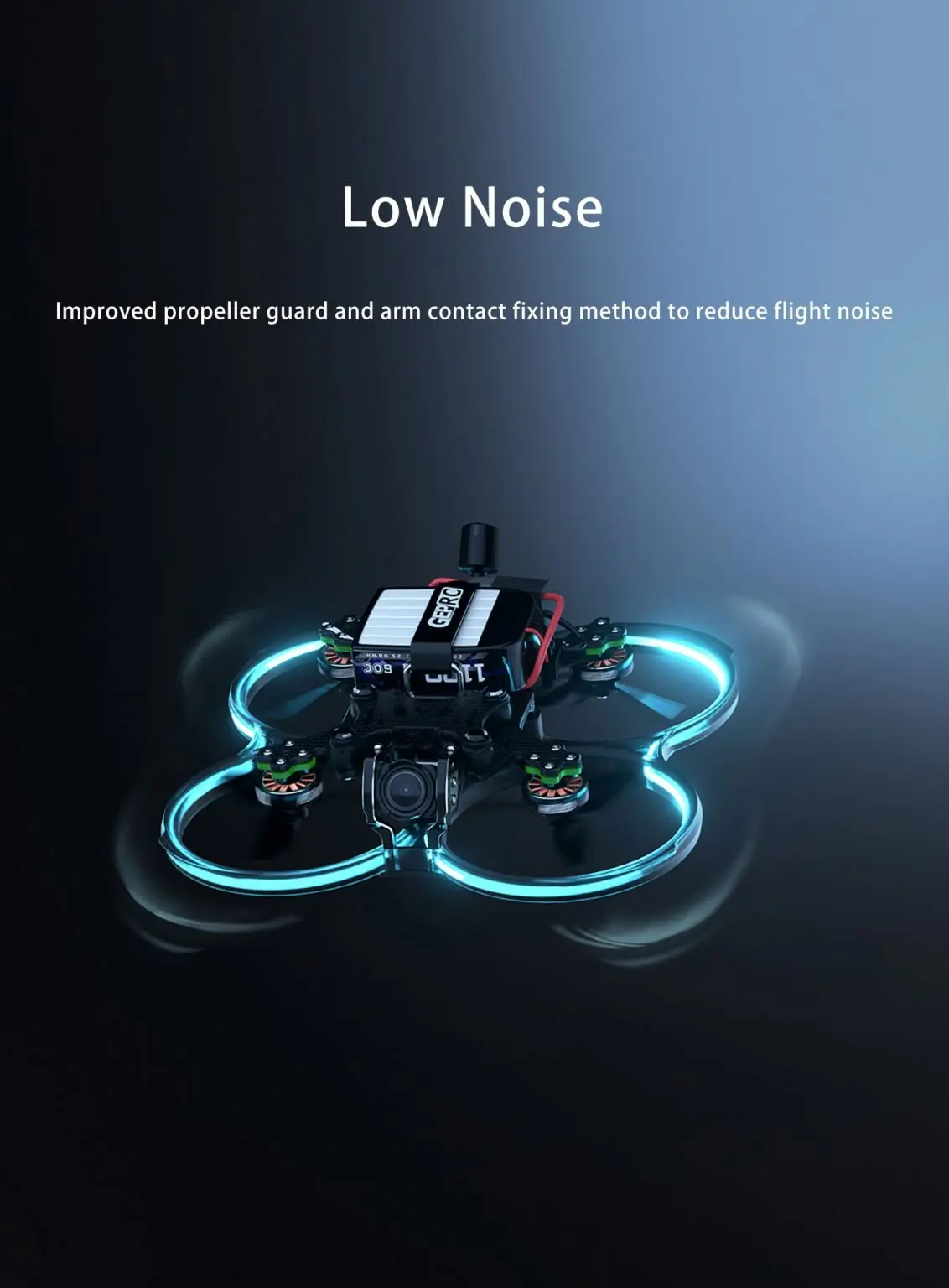

Cinebot30 will be equipped with a powerful 1804 motor with optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Features
1. Design that combines engineering and aesthetics.

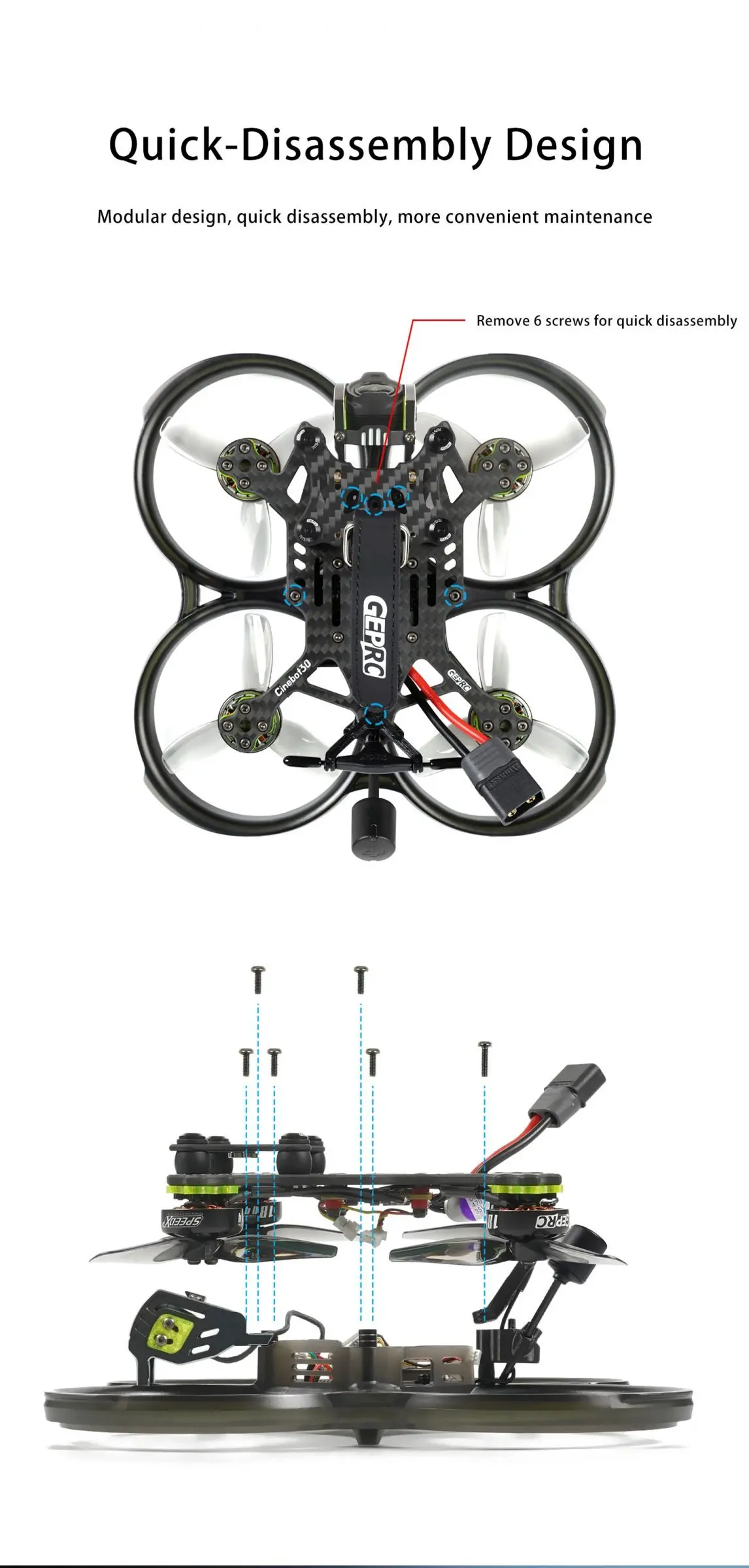

2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
3. Selected high-toughness and impact-resistant PC material for injection molding.

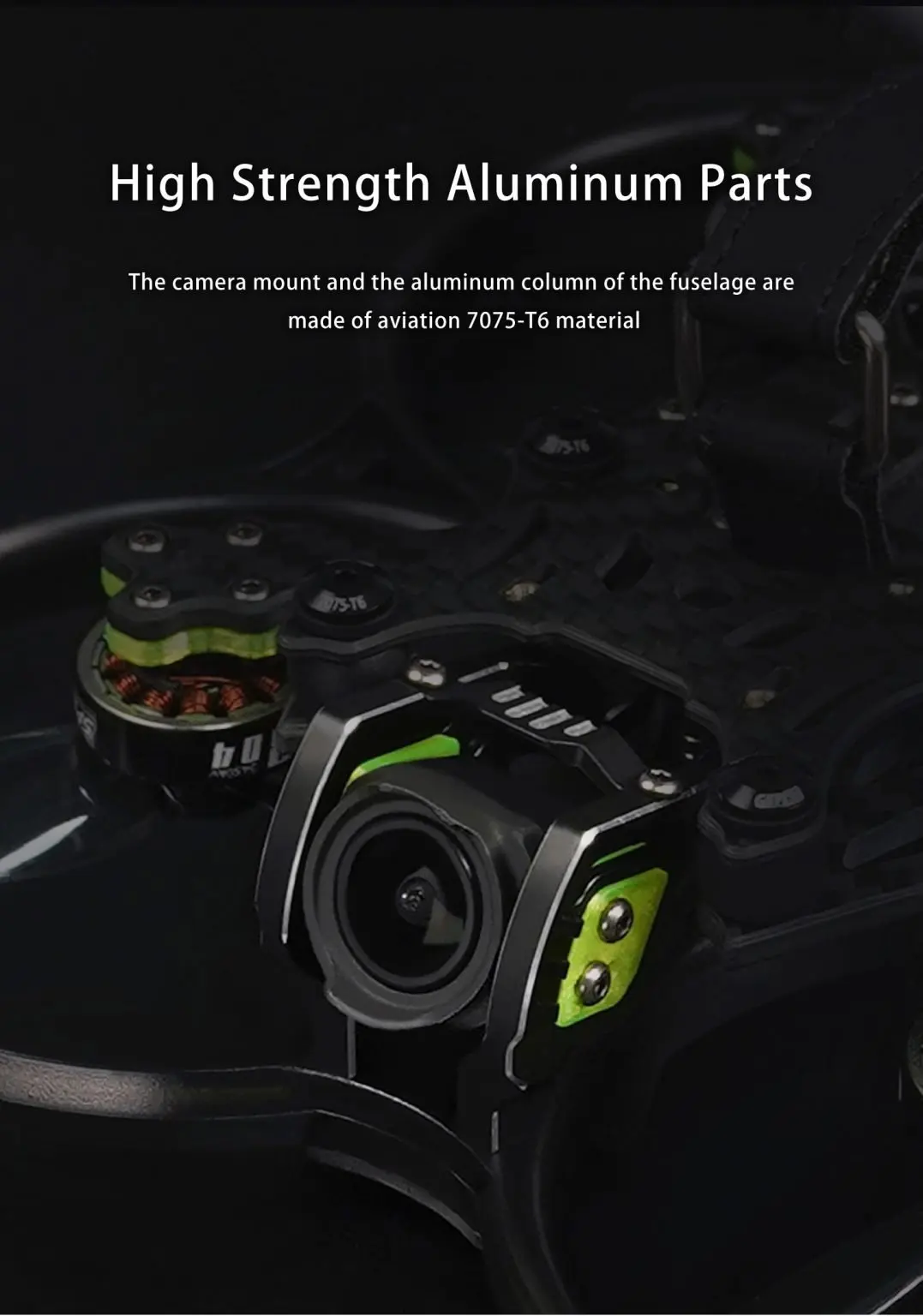

4. Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.
5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.

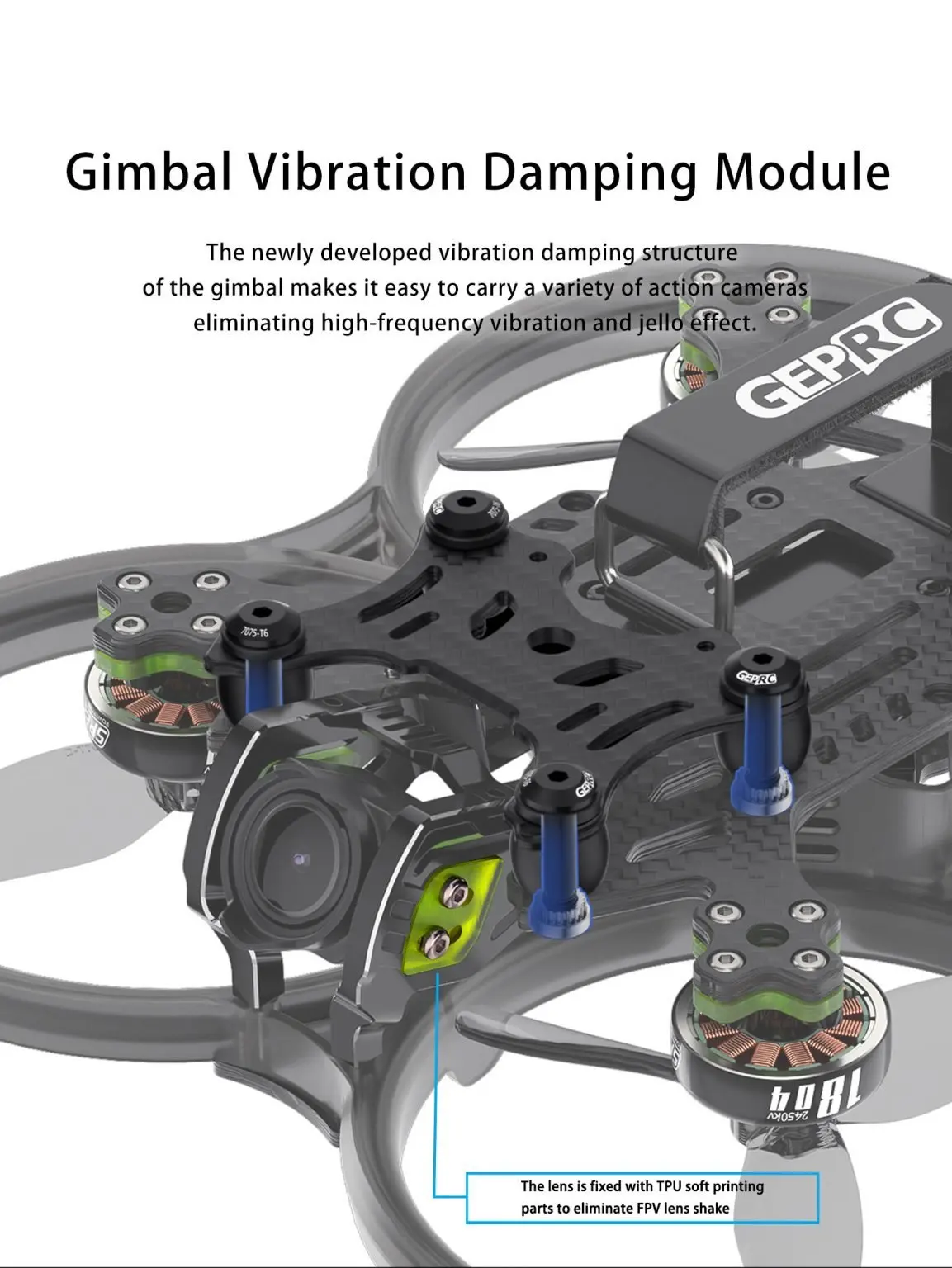

6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.

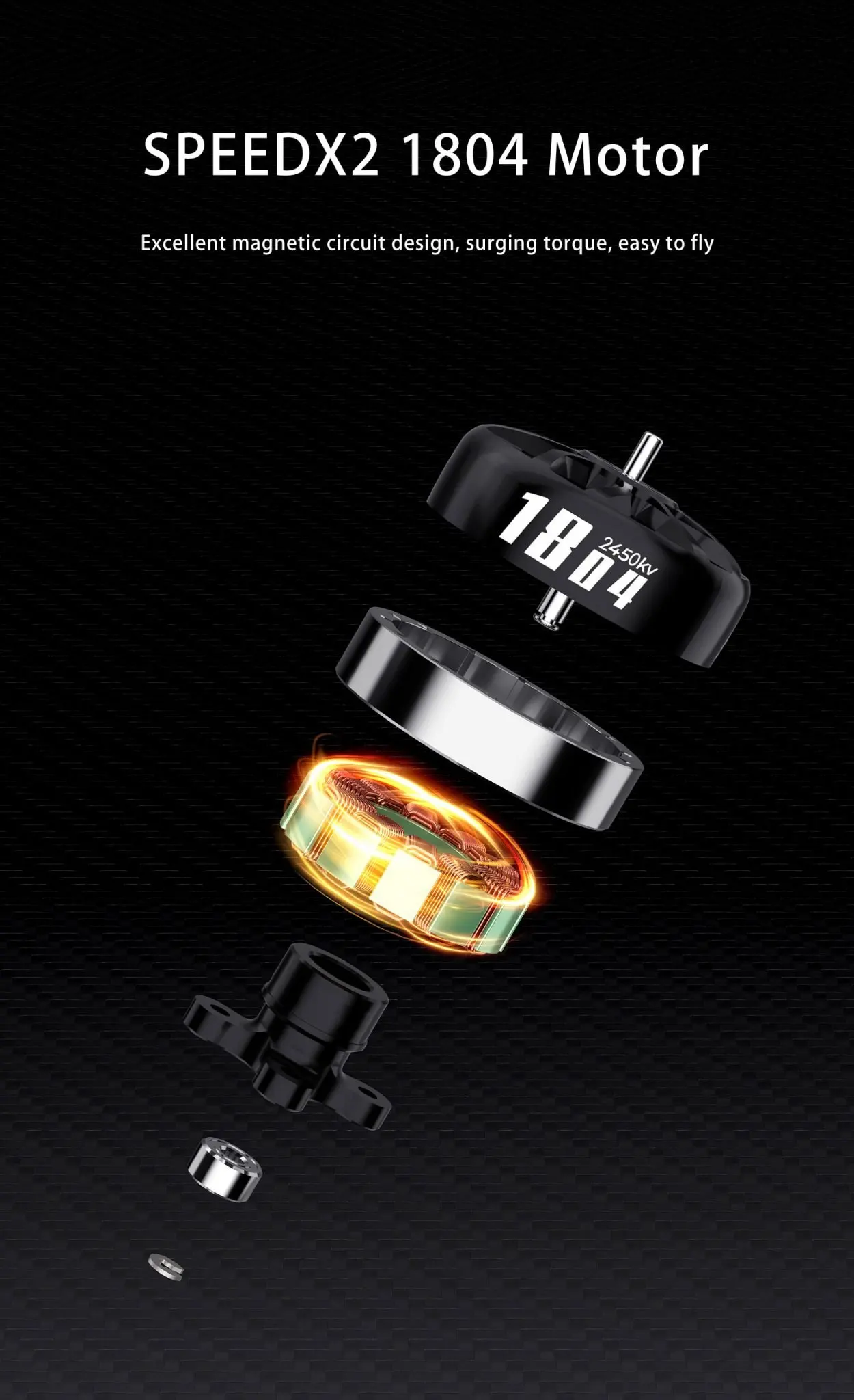

7. Powerful 1804 motor, surging torque to deal with ultra-low altitude flight at will.
8. With the new GEP-F722-45A AIO V2, stable performance, more secure flight
9. Five kinds of FPV system with the program, choose to belong to your first-person view
10. Tuned by GEPRC professionals, delicate and silky flying feel

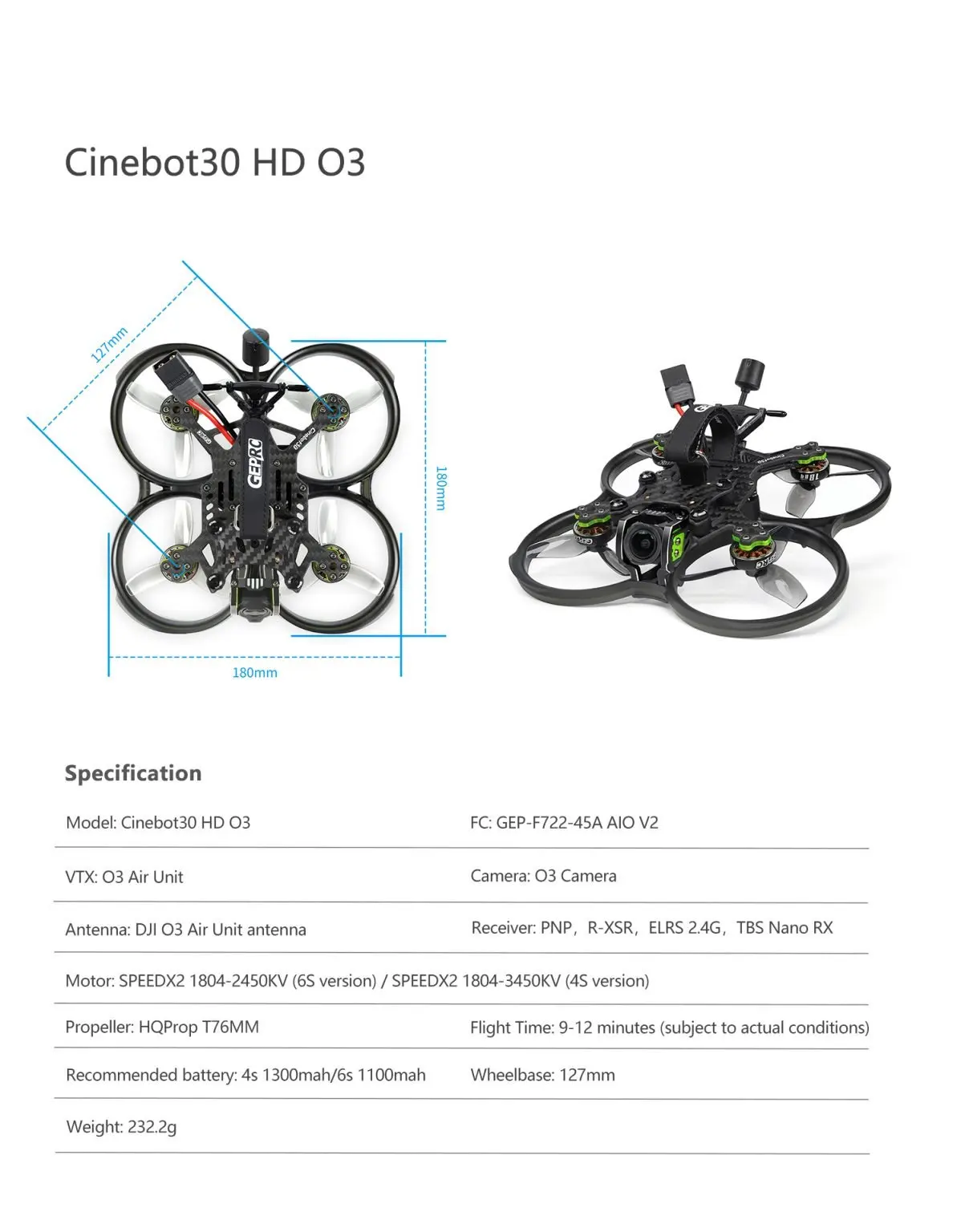

Specifications
Model: Cinebot30 HD O3 Quadcopter
Brand: GEPRC
Frame: GEP-CT30 O3

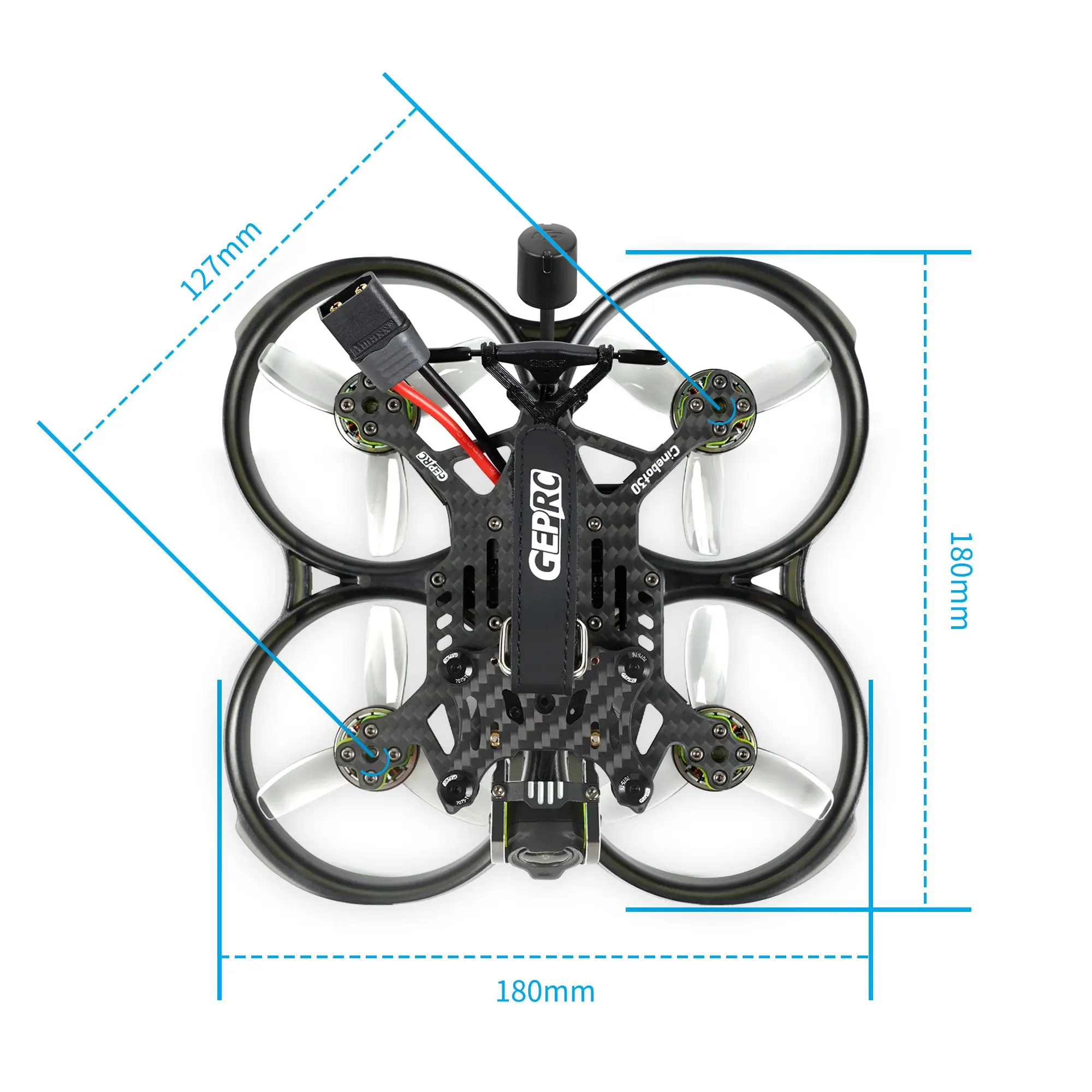

Wheelbase:127mm
Isolation Plate:2mm
Main plate:3mm
Bottom plate:1.5mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P

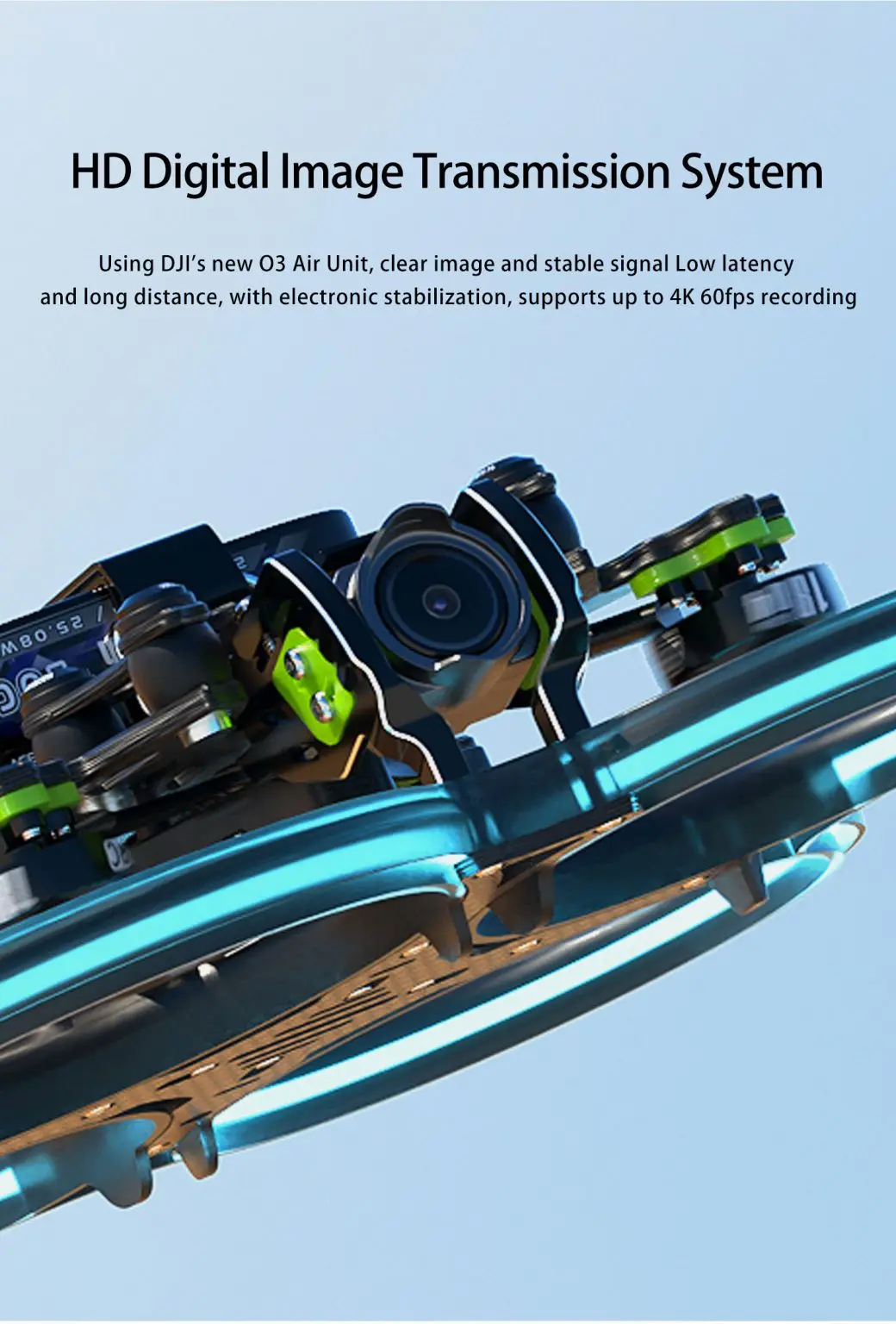

VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: HQ prop T76mm
Antenna: DJI O3 Antenna
Charge connector: XT60H-M
Motor: SPEEDX2 1804-2450KV(6S Version)/ SPEEDX2 1804-3450KV(4S Version)

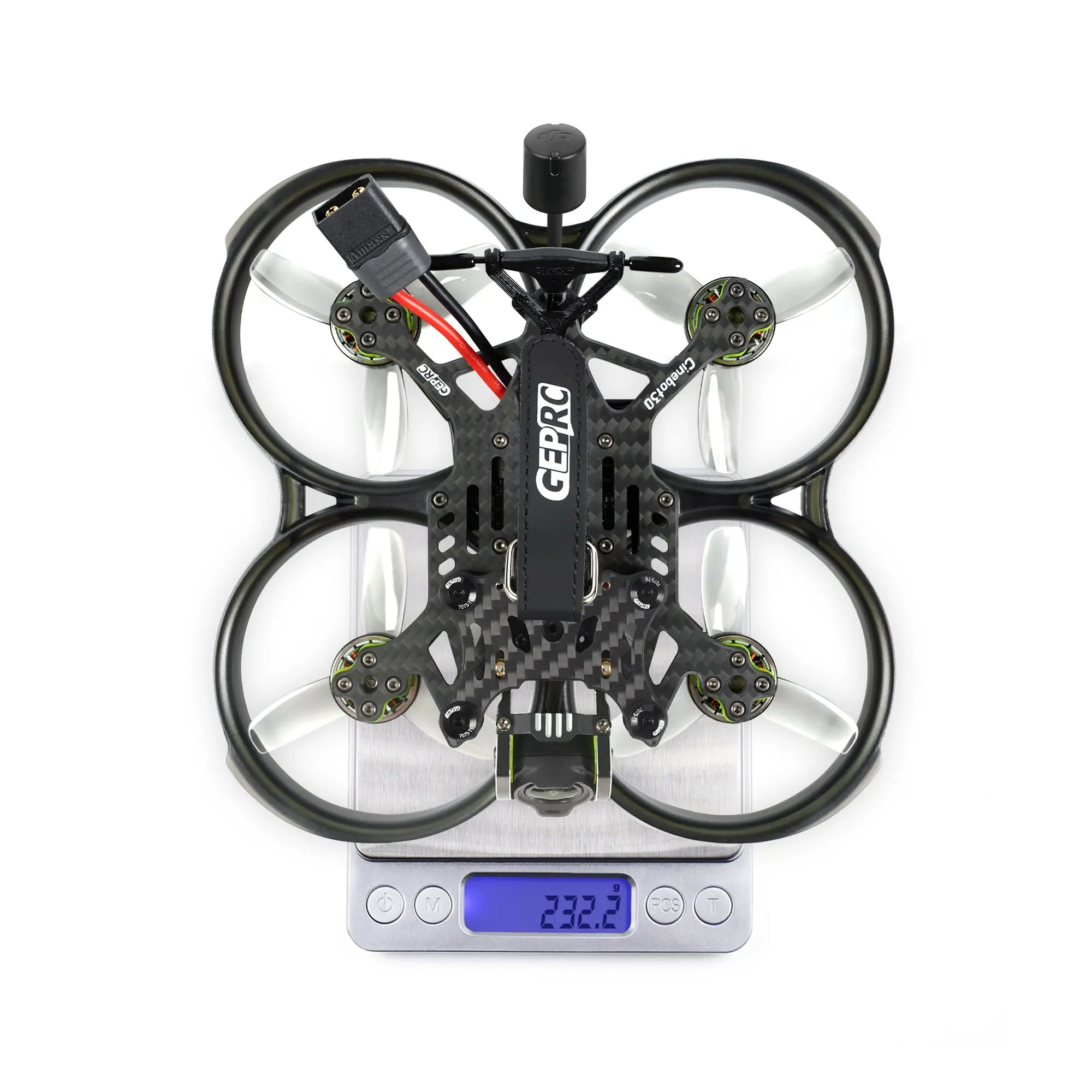

Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g / O3 version 232.2g (excluding battery, the above are TBS Nano RX version)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended Battery: LiPo 4S 1100mAh-1300mAh (4S Version) / LiPo 6S 850mAh-1100mAh(6S Version)
Includes
1 x Cinebot30 HD O3 Quadcopter
2 x HQProp T76MM(pair)
1 x Battery strap M15*200mm
1 x Battery strap M15*220mm
2 x Battery Silicone Pads
1 x Set of screws
1 x Set of screwdrivers
1 x GoPro camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
