SPECIFICATIONS

Brand Name: Auloda

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: other

Camera Mount Type: Fixed Camera Mount

Camera Mount Type: other

Controller Battery: No include

Origin: Mainland China

Takeoff Weight: 100-200g

Aerial Photography: No

Control Channels: 8 CHANNELS

Transit Time (Days): 4 minutes

Flight Time: <5

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Anti-wind Ability: No

Hign-concerned Chemical: None

Is Electric: No battery

Material: Carbon Fiber

Material: Plastic

Material: Metal

Drone Weight: 200-300

Remote Distance: 1000 meters

Package Includes: Original Box

Package Includes: Operating Instructions

Remote Control: Yes

State of Assembly: Ready-to-Go

Barcode: No

Type: HELICOPTER

Features: other

Certification: CE

Warning: Does not contain any batteries

Warranty: 1 month

Model Number: GEPRC DoMain4.2/DoMain3.6 HD WTFPV

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Operator Skill Level: expert

Equipped with Aerosol Spray System/Equipment Capacity: No

Charging Voltage: 14.8V

Motor: Brushless Motor

Charging Time: 30 minutes

Plugs Type: XT60

Power Source: Electric

Please note: This version does not include VTX/Camera/Antenna. It is a semi-assembled product and buyers are required to purchase these accessories for welding and installation.

Summary

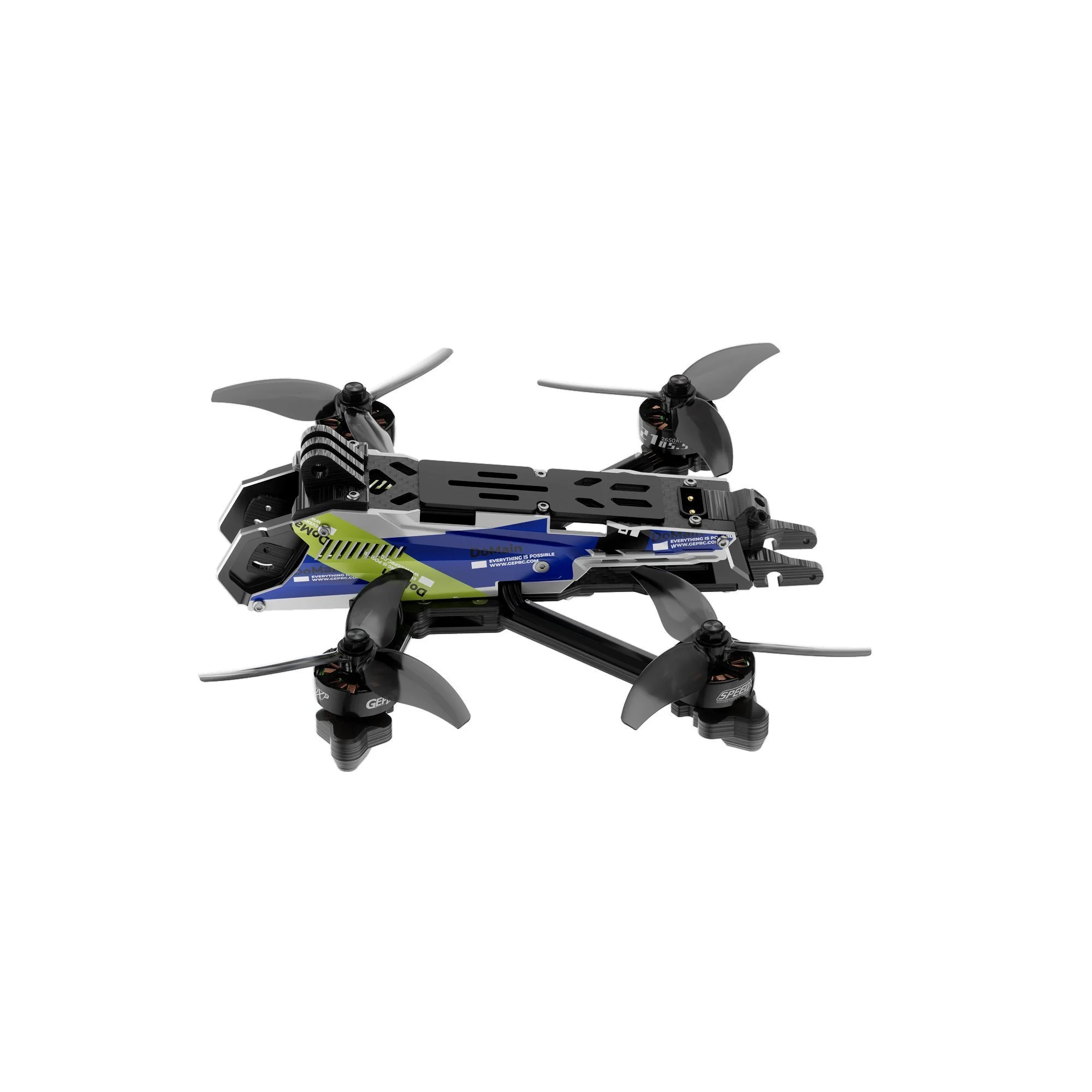

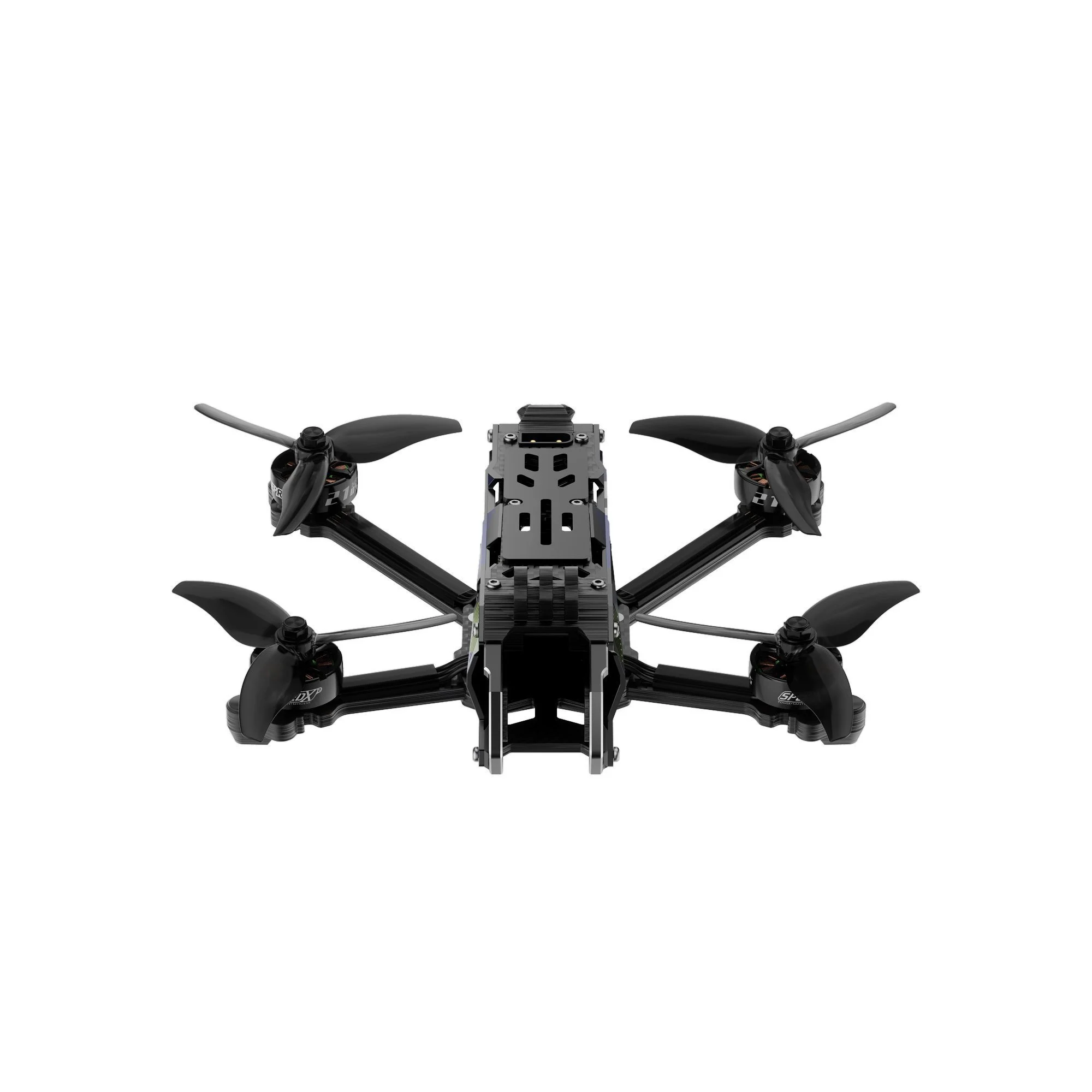

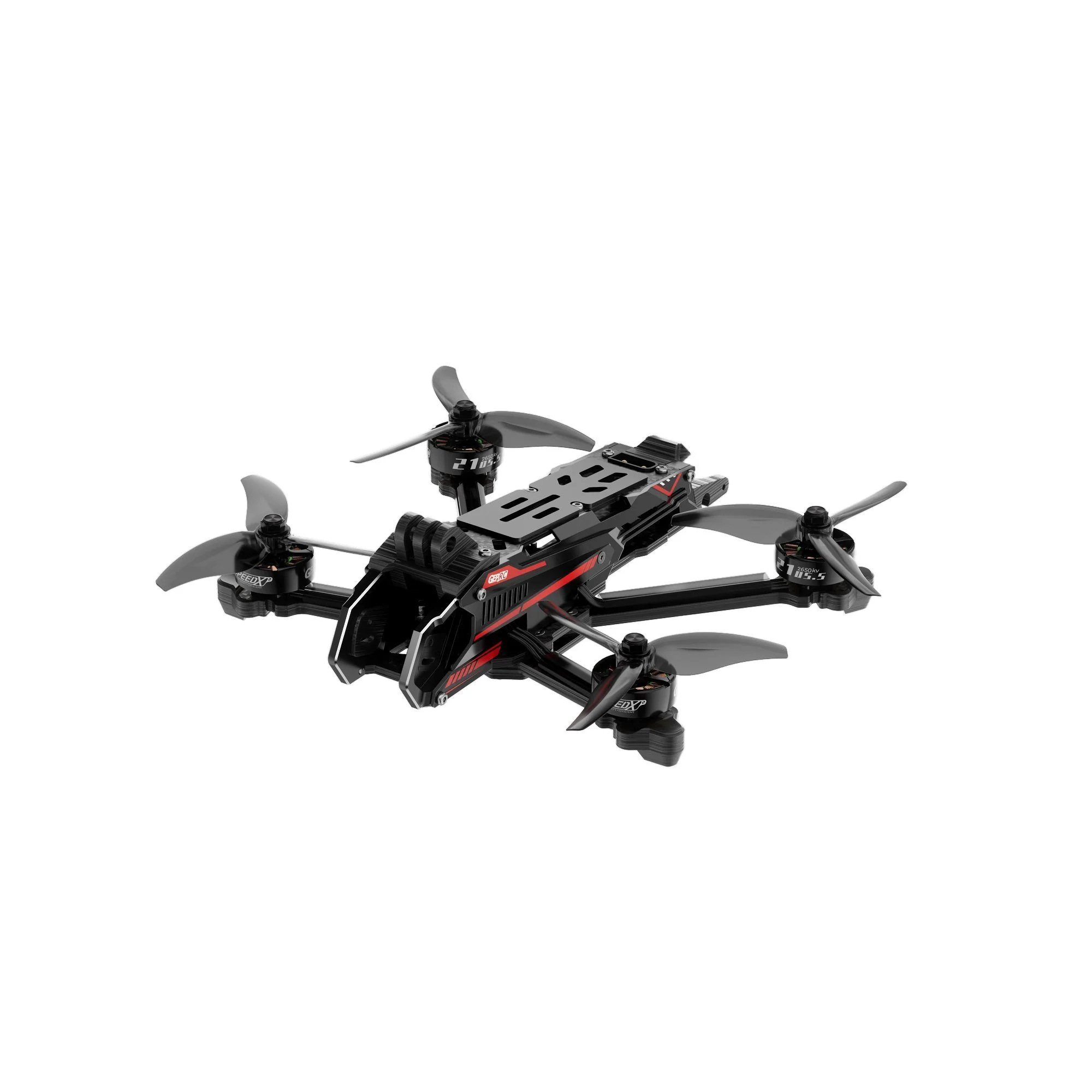

DoMain is GEPRC’s new generation of consumer Freestyle FPV drone, It brings pilots the GEPRC team’s comprehensive technical evolution, as well as a deep comprehension of the Freestyle quadcopters , DoMain is made for the dream Freestyle FPV drone what we’ve been looking for.

GEPRC DoMain3.6 HD WTFPV Specifications

Product name: 3.6DoMain

Frame：GEP-DoMain

Wheelbase：170mm

Roof thickness：2mm

Base plate thickness: 2.5mm

Arm thickness:4.0mm

Midplate thickness：3mm

FC：TAKER F722 SE

ESC：TAKER E55A 32Bit 4IN1

MCU： STM32F722RET6

Gyro: MPU6000

OSD：AT7456E

VTX： None

Camera： None

Antenna： None

Motor：SPEEDX2 2105.5 2650KV( M5 Shift)

Propellers: GEMFAN 3630 – 3

Weight: 295g ±5g

Recommend battery：Lipo 6S 1050-1300mah

Connector:XT60

GEPRC DoMain4.2 HD WTFPV Specifications

Product name: 4.2DoMain

Frame：GEP-DoMain

Wheelbase：194mm

Top plate thickness: 2mm

Base plate thickness: 2.5mm

Arm thickness:4.0mm

Midplate thickness：3mm

FC：TAKER F722 SE

ESC：TAKER E55A 32Bit 4IN1

MCU： STM32F722RET6

Gyro: MPU6000

OSD：AT7456E

VTX：None

Camera：None

Antenna：None

Motor：SPEEDX2 2105.5 2650KV( M5 Shift)

Propellers: GEMFAN 4023 – 3

Weight: 310g ±5g

Recommend battery：Lipo 6S 1050-1300mah

Connector:XT60

Includes

1 x DoMain

2 x GEMFAN 4023 – 3(1 pair)

2 x M15*200mm Battery cable tie

1 x Spare screw bag

1 x L-shaped screwdriver(1.5mm)

1 x L-shaped screwdriver (2mm)

1 x M8 Wrench

1x Left and right side panels
