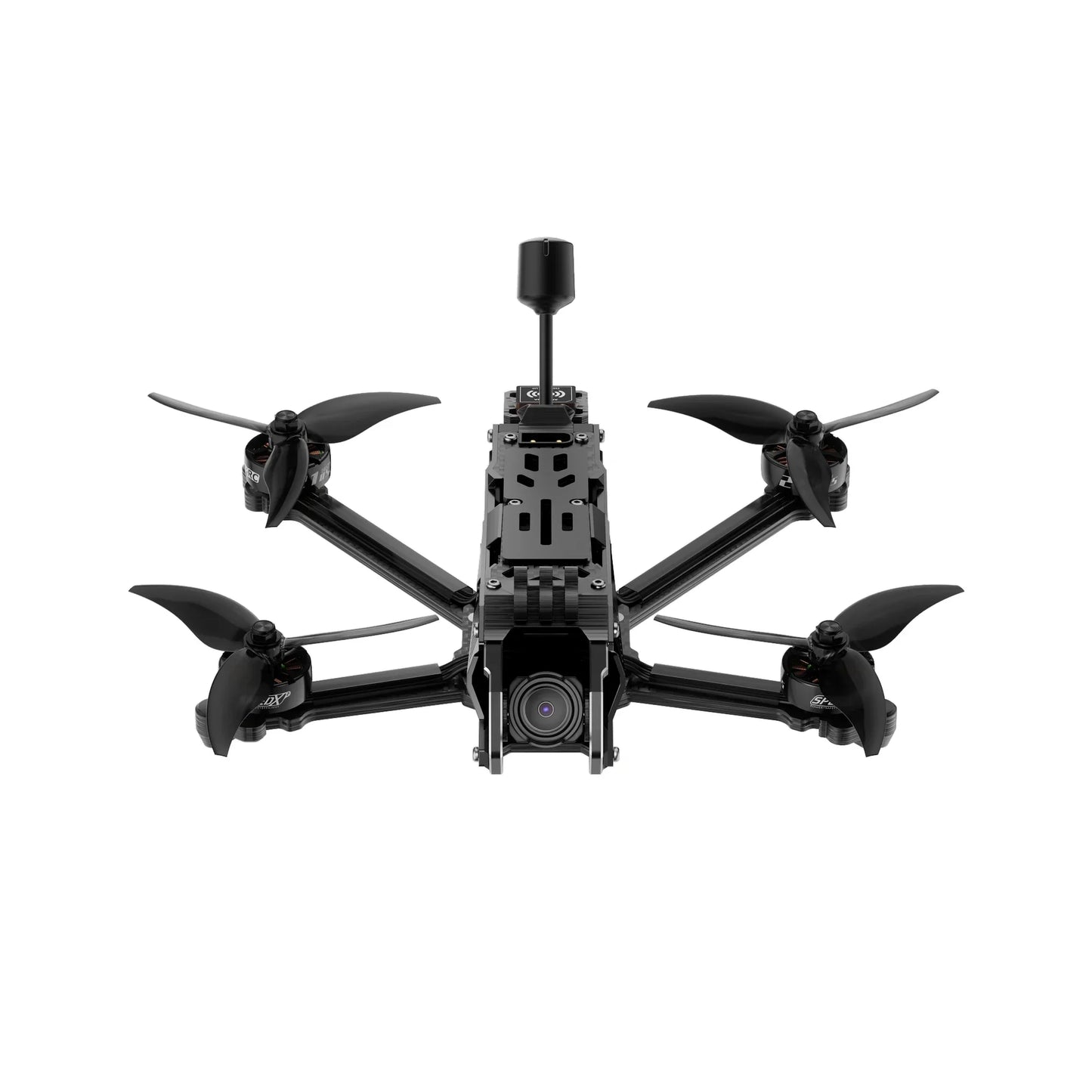

GEPRC DoMain3.6 HD O3 Air Unit VTX Freestyle FPV Drone 3.6Inch with O3 Camera SPEEDX2 2105.5 2650KV Motor TAKER F722 E55A Stack
GEPRC DoMain3.6 HD O3 Air Unit VTX Freestyle FPV Drone 3.6Inch with O3 Camera SPEEDX2 2105.5 2650KV Motor TAKER F722 E55A Stack
SPECIFICATIONS
Brand Name: GEPRC
Indoor/Outdoor Use: Indoor-Outdoor
Video Capture Resolution: other
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: other
Controller Battery: No include
Origin: Mainland China
Takeoff Weight: 100-200g
Aerial Photography: No
Control Channels: 8 CHANNELS
Transit Time (Days): 4 minutes
Flight Time: <5
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Anti-wind Ability: No
Hign-concerned Chemical: None
Is Electric: No battery
Material: Carbon Fiber
Material: Plastic
Material: Metal
Drone Weight: 300g
Remote Distance: 1000 meters
Package Includes: Original Box
Package Includes: Operating Instructions
Remote Control: Yes
State of Assembly: Ready-to-Go
Barcode: No
Type: HELICOPTER
Features: other
Dimensions: Wheelbase:170mm
Certification: CE
Warning: Does not contain any batteries
Warranty: 1 month
Model Number: GEPRC DoMain3.6 HD O3
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: expert
Equipped with Aerosol Spray System/Equipment Capacity: No
Charging Voltage: 14.8V
Motor: Brushless Motor
Charging Time: 30 minutes
Power Source: Electric
Summary
DoMain is GEPRC's new generation of consumer Freestyle FPV drone, It brings pilots the GEPRC team's comprehensive technical evolution, as well as a deep comprehension of the Freestyle quadcopters , DoMain is made for the dream Freestyle FPV drone what we've been looking for.
Feature
1.Unique structure design,Increase the stability of the frame structure.
2.The new side panel design is integrated, supporting DIY side panel decals.Higher creativity and diversity.
3.Equipped with sufficient power, it can complete difficult freestyle flight.
4.Support full-size GO PRO or naked GO PRO on itself, Shooting all perfect footages in the view
5.DC structure design, the frame looks neat and compact.The extraordinary high integration, Without Prop in the view, showing you a pure picture.
6.Equipped with M-10 GPS to ensure the safety of every flight with rescue mode.
Specifications
Product name: 3.6DoMain
Frame:GEP-DoMain
Wheelbase:170mm
Roof thickness:2mm
Base plate thickness: 2.5mm
Arm thickness:4.0mm
Midplate thickness:3mm
FC:TAKER F722 SE
ESC:TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyro: MPU6000
OSD:AT7456E
VTX:O3 Air Unit
Camera:O3 camera
Antenna:5.8G&2.4G
Motor:SPEEDX2 2105.5 2650KV
Propellers: GEMFAN 3630 – 3
Weight: 295g ±5g
Receiver:PNP/ TBS NanoRX / GEPRC ELRS2.4
Recommend battery:Lipo 6S 1050-1300mah
Includes
1 x DoMain
2 x GEMFAN 3630-3(1 pair)
2 x M15*200mm Battery cable tie
1 x Spare screw bag
1 x L-shaped screwdriver(1.5mm)
1 x L-shaped screwdriver (2mm)
1 x M8 Wrench
1x Left and right side panels
