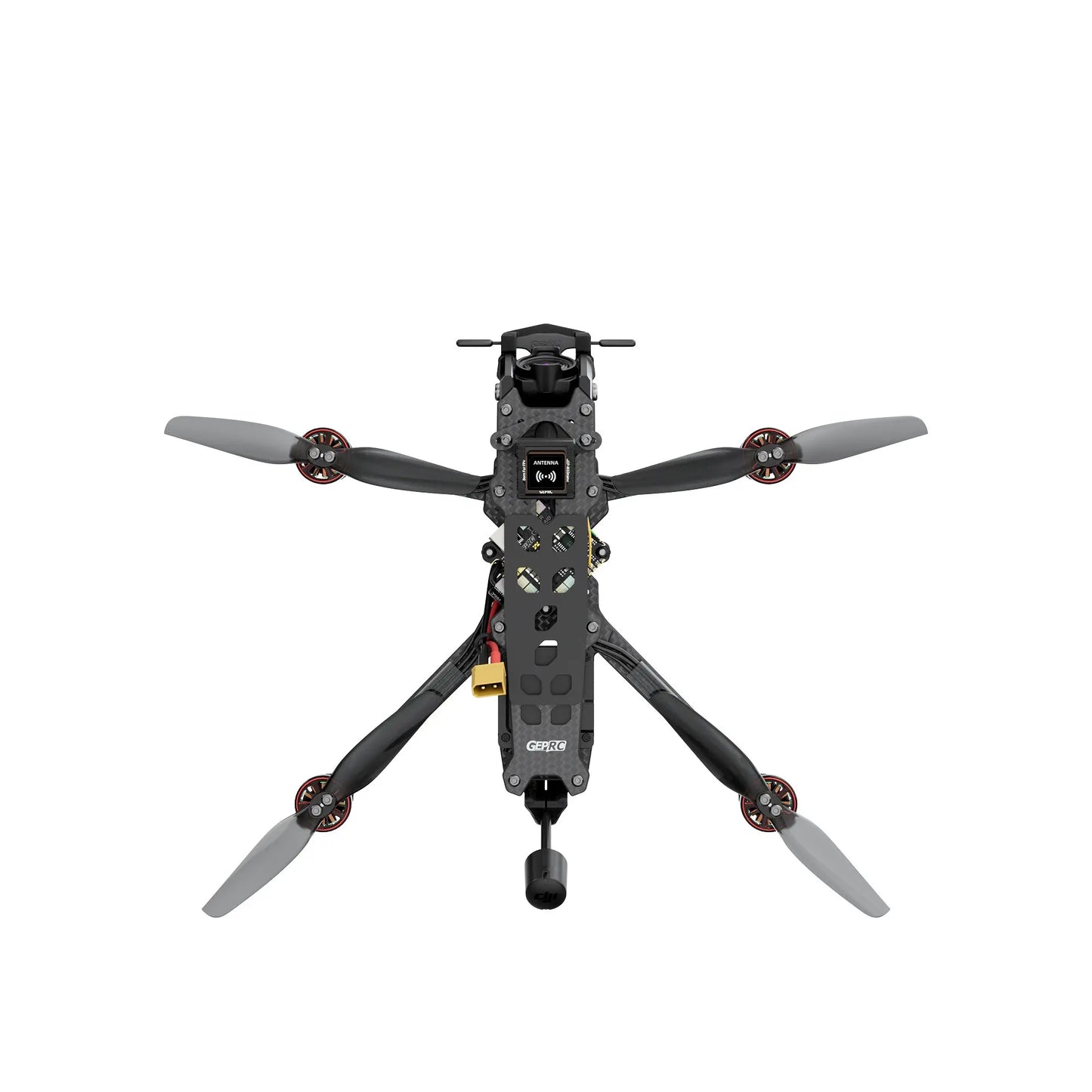

GEPRC Tern-LR40 HD O3 Long Range FPV Drone 45A AIO 1404 3000KV HQProp XT30 T4X2.5 180g±5g 10-25min For RC FPV Quadcopter Drone

GEPRC Tern-LR40 HD O3 Long Range FPV Drone 45A AIO 1404 3000KV HQProp XT30 T4X2.5 180g±5g 10-25min For RC FPV Quadcopter Drone

Regular price $718.75 USD
Regular price $0.00 USD Sale price $718.75 USD
Sale Sold out
Color
Ships From

SPECIFICATIONS

Brand Name: GEPRC

GEPRC Model: GEPRC Tern-LR40 HD O3

Remote Distance: 2000m

Remote Control: Yes

Package Includes: Original Box

Package Includes: Operating Instructions

Package Includes: Camera

Anti-wind Ability: <5

Video Capture Resolution: 1080p FHD

Controller Battery: none

Takeoff Weight: 500g

Aerial Photography: Yes

Control Channels: 8 CHANNELS

Material: Metal

Material: Plastic

Material: Carbon Fiber

Flight Time: 10~20

Origin: Mainland China

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Transit Time (Days): 2000m

Drone Weight: 190g

Dimensions: 4inch

Motor: Brushless Motor

Plugs Type: XT30

Type: HELICOPTER

State of Assembly: Almost Ready

Barcode: Yes

Features: App-Controlled

Features: FPV Capable

Features: Integrated Camera

Features: other

Indoor/Outdoor Use: outdoor

Charging Voltage: 14.8V

Charging Time: 60minutes

Warning: Minors please use under the supervision of an adult

Certification: CE

CE: Certificate

Model Number: GEPRC Tern-LR40 HD O3 Long Range FPV Drone

Power Source: Electric

Operator Skill Level: Intermediate

Operator Skill Level: expert

Summary

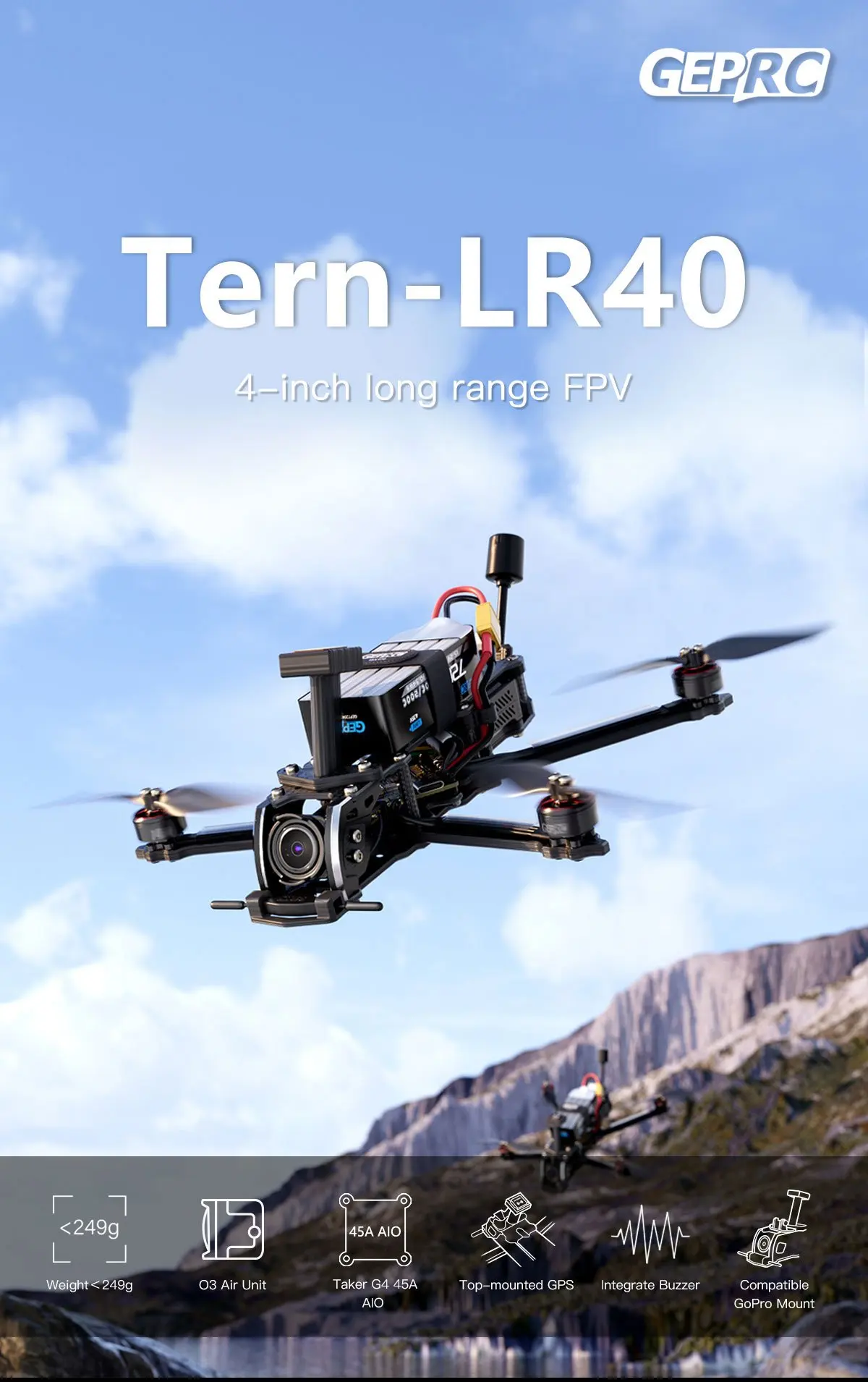

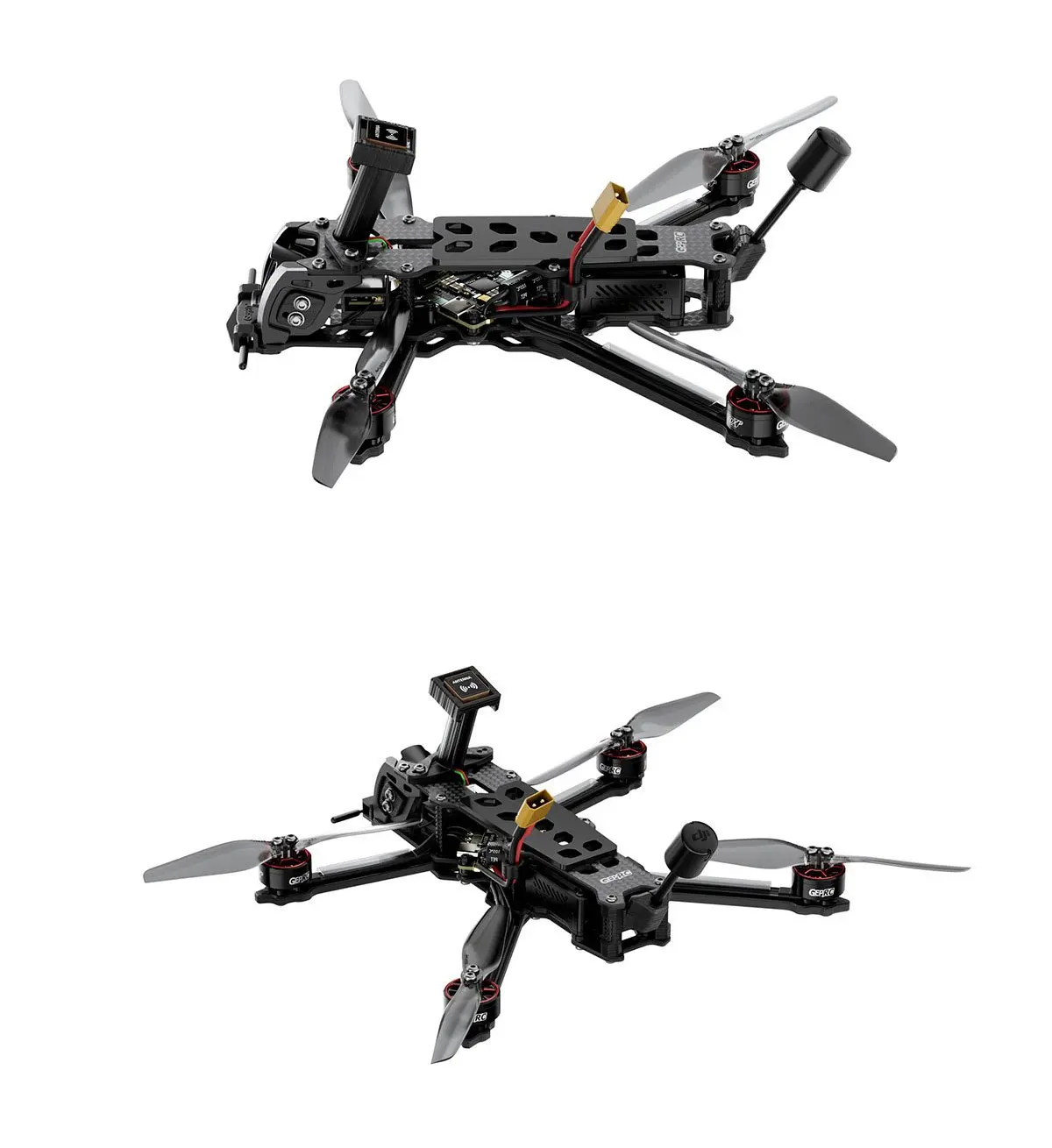

In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

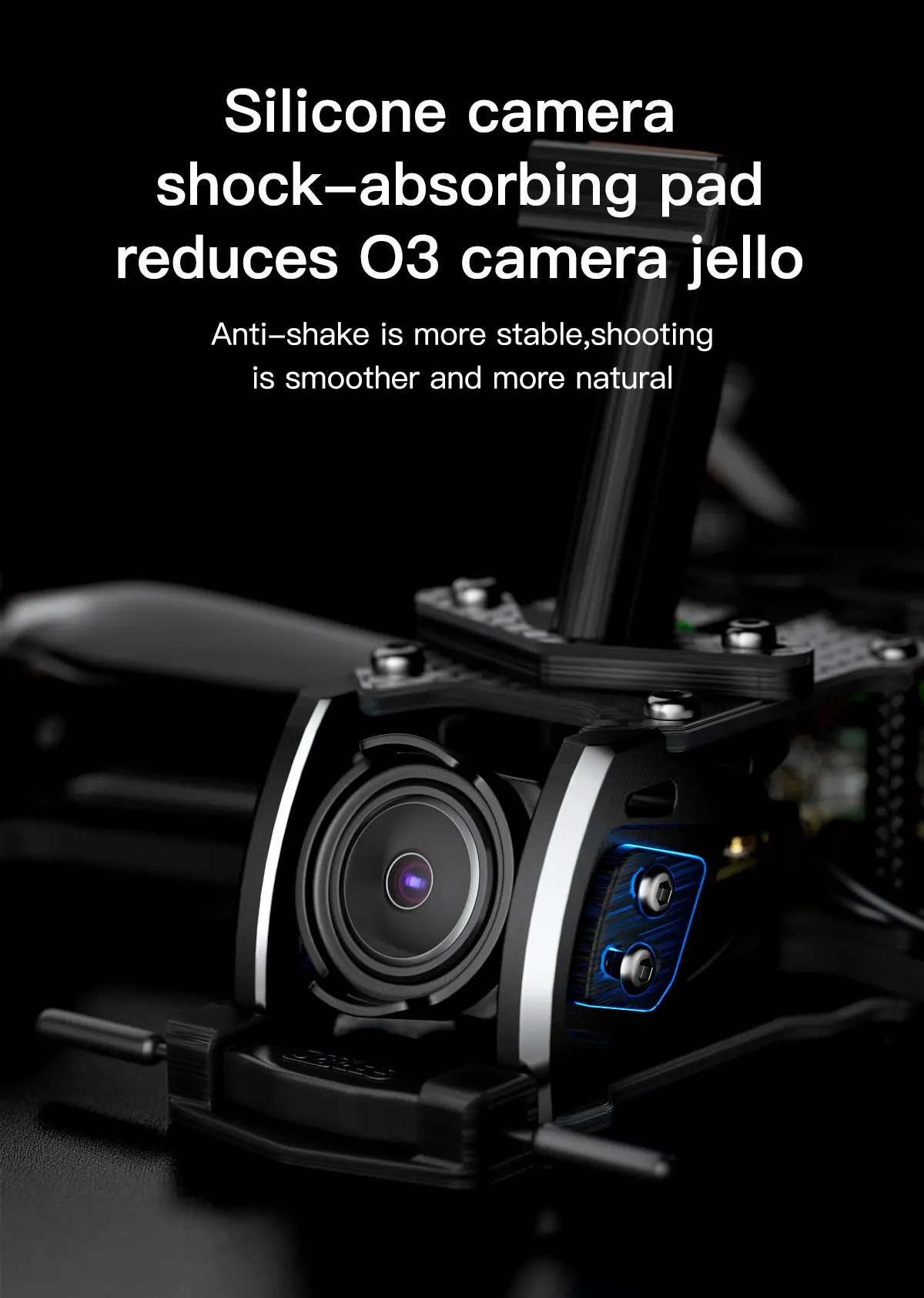

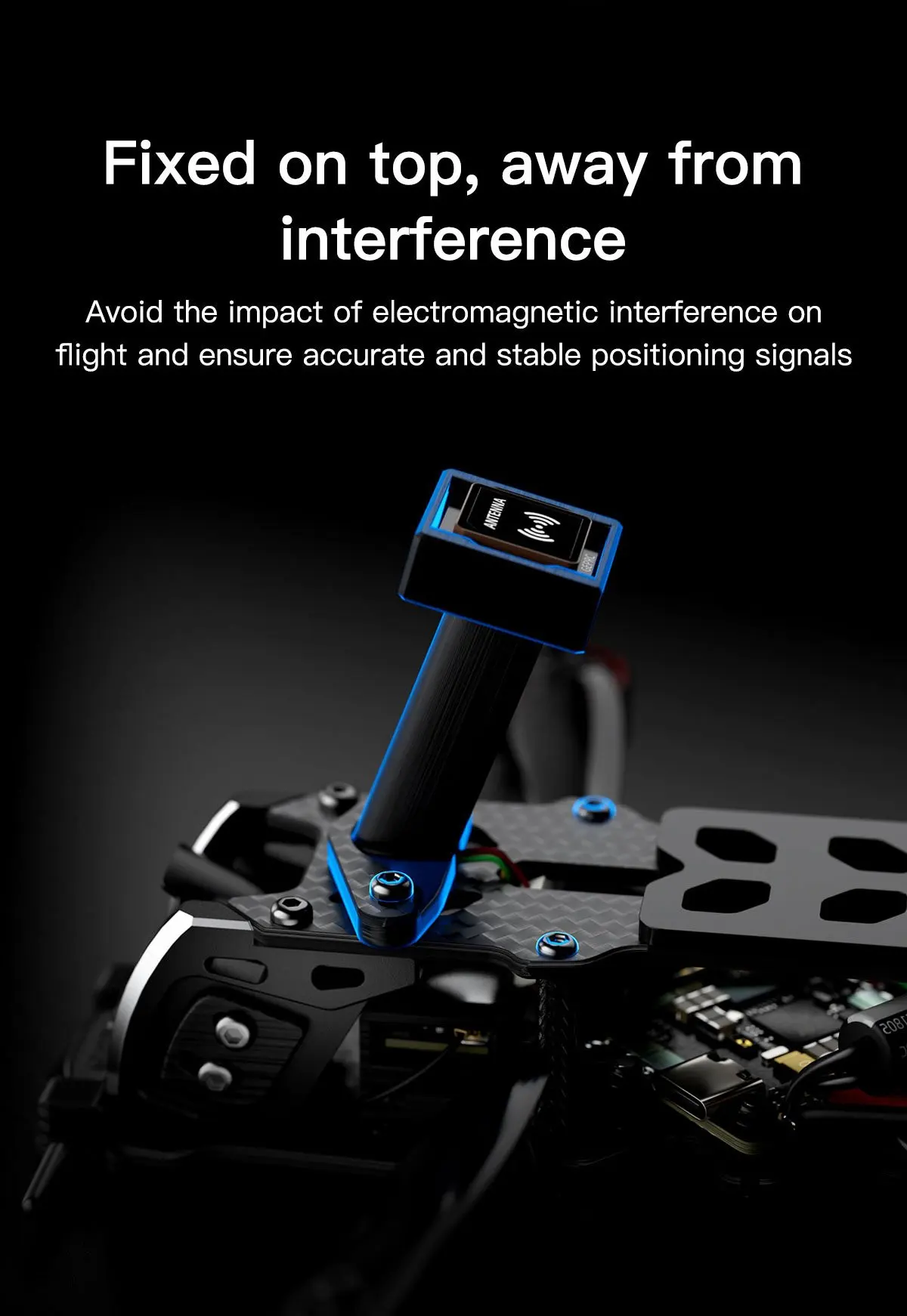

Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jello from O3 camera.

The Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.



Feature

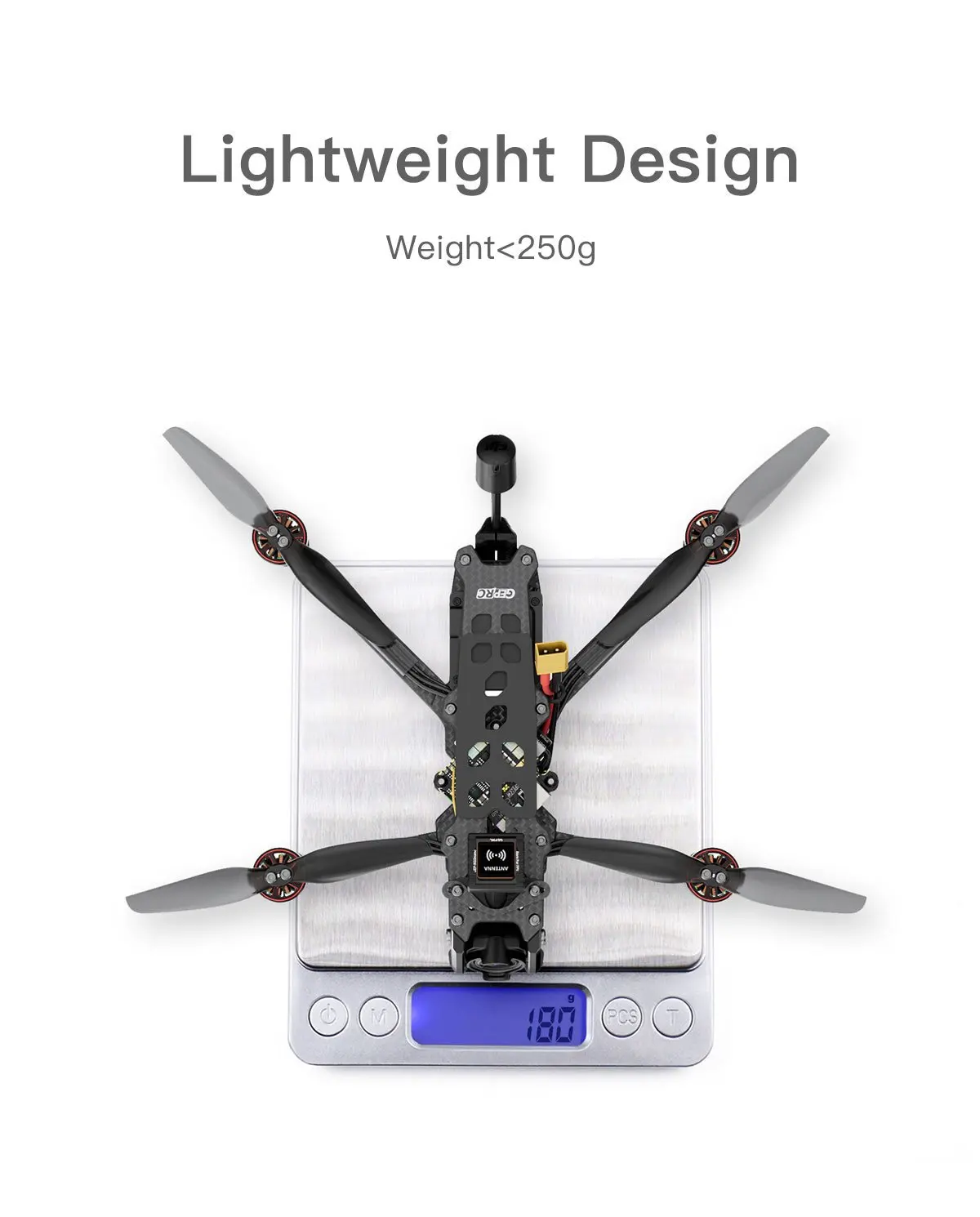

  1. New lightweight design, weight under 249g.

  2. Expand interference GPS fixation method and stay away from interference sources

  3. DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.

  4. Install BB ring to set the battery low voltage alarm

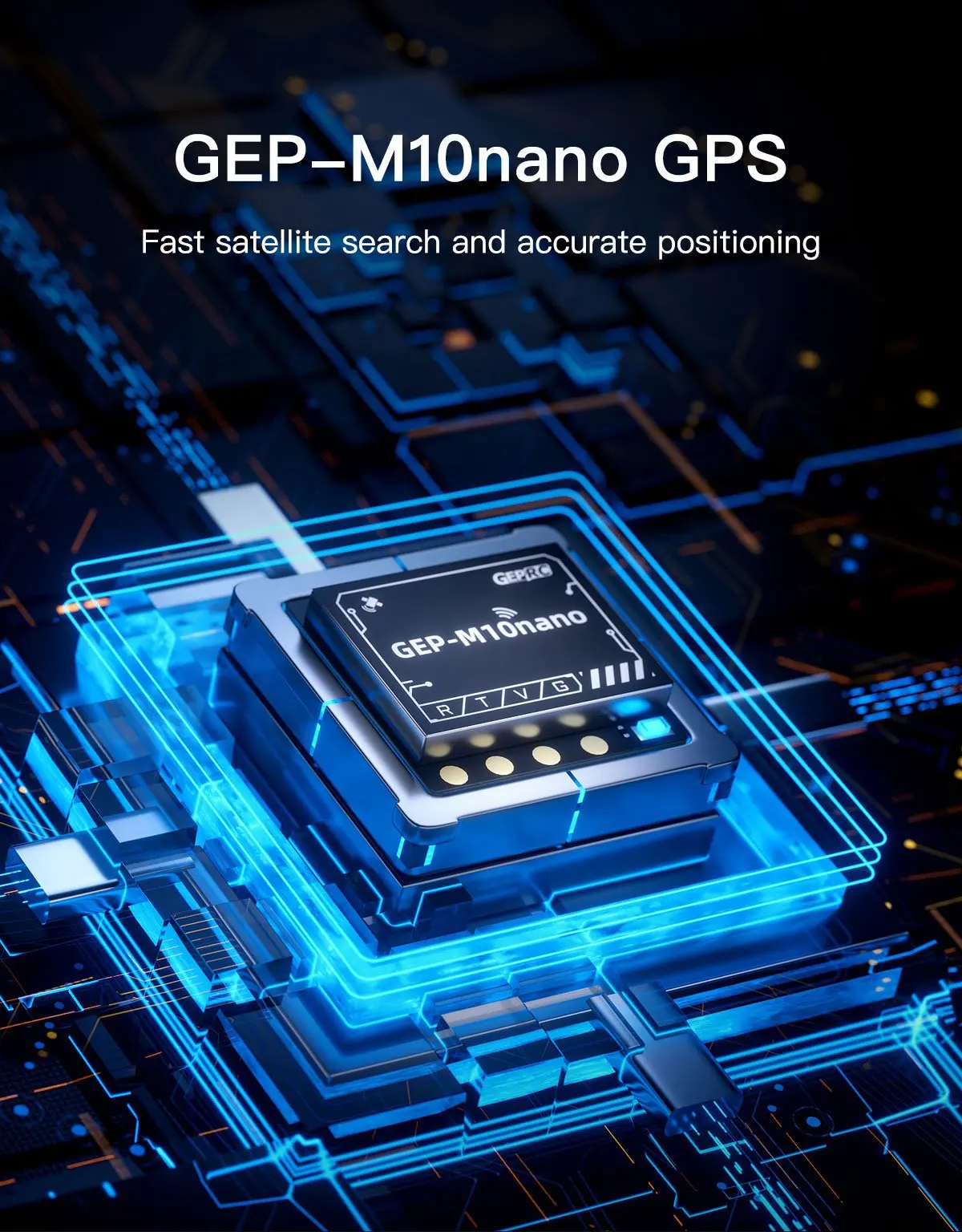

  5. Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.

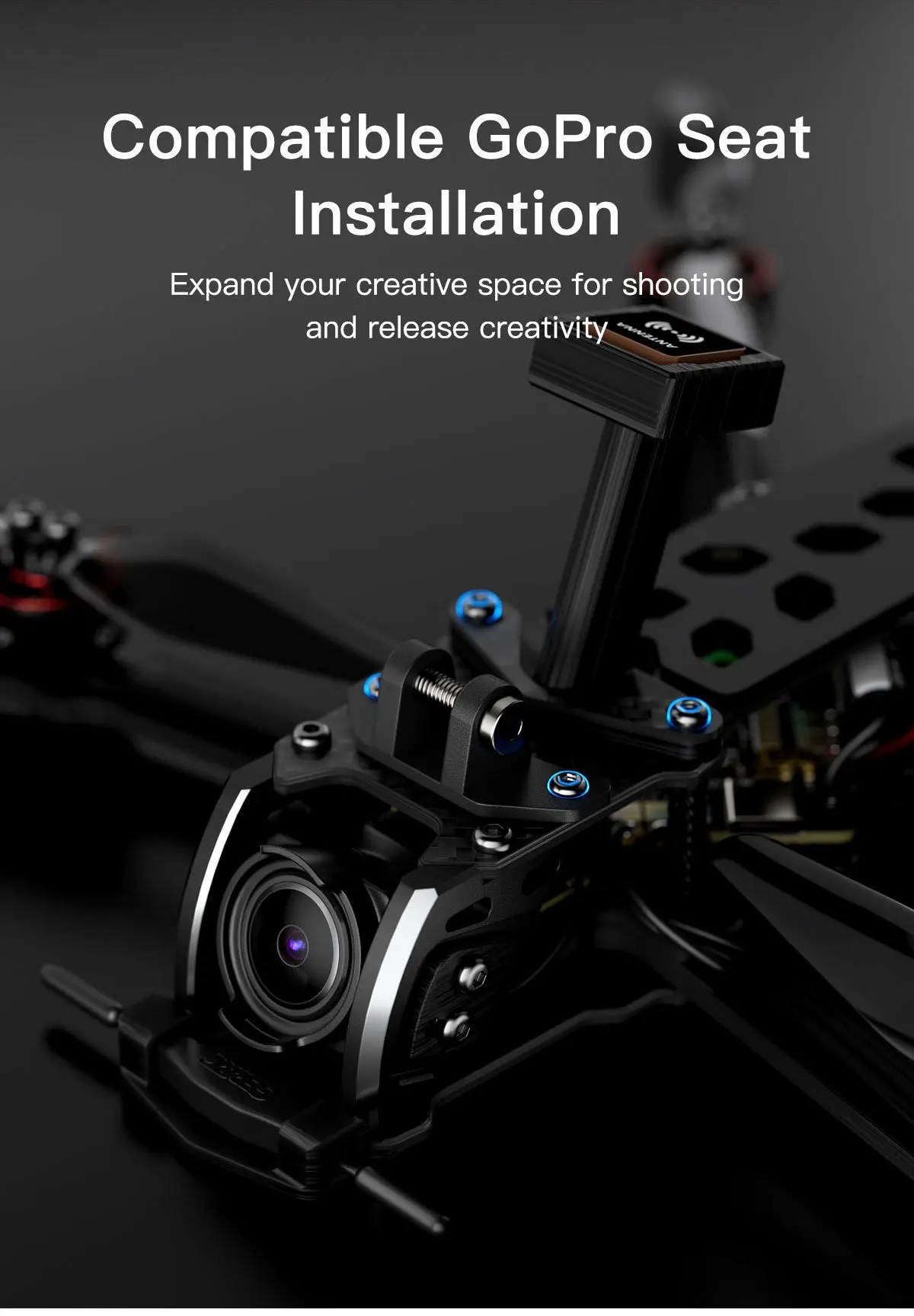

  6. Compatible gopro mount installation, expandable shooting creation.

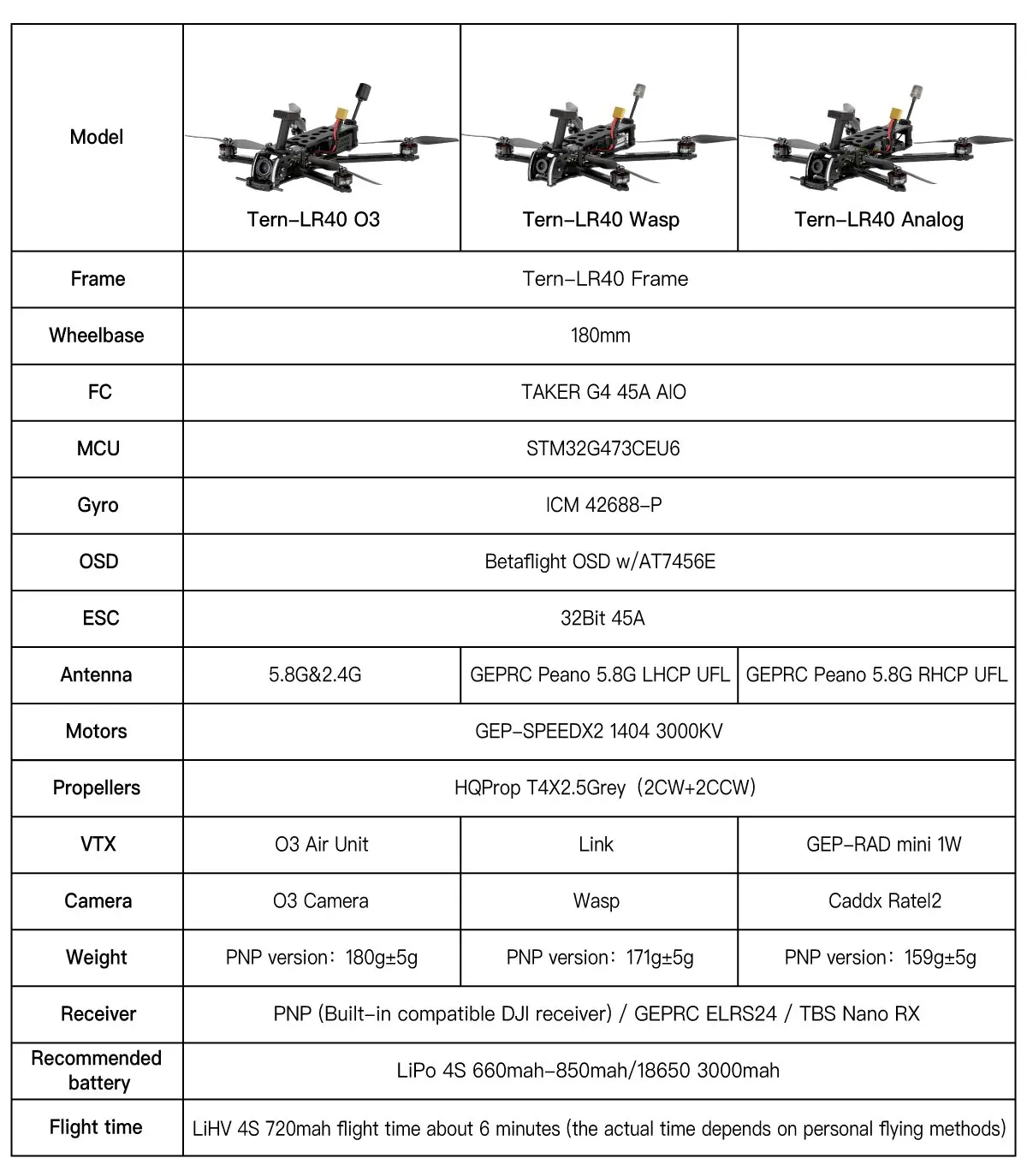

Specification

  • Model: Tern-LR40

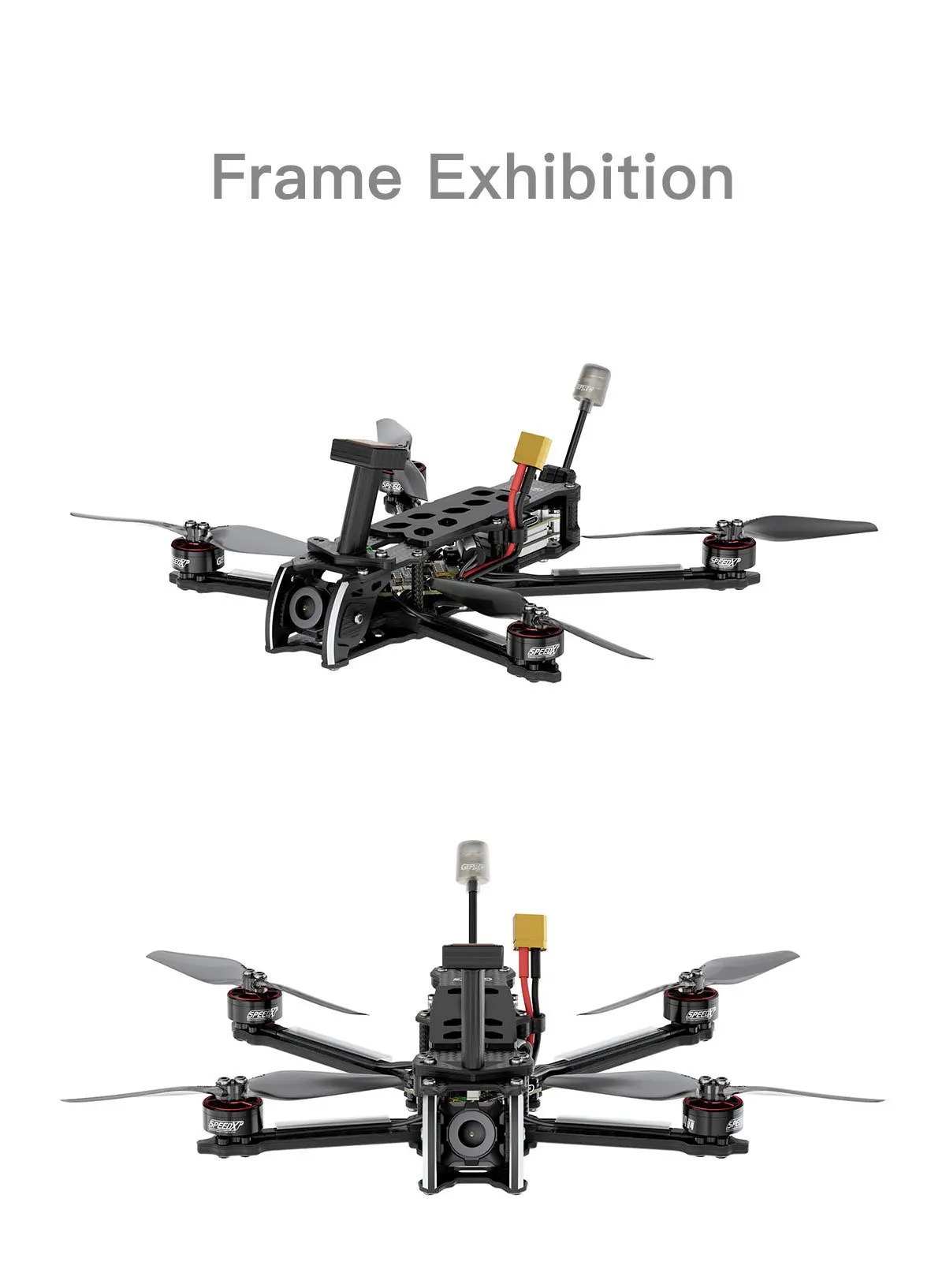

  • Frame: Tern-LR40 Frame

  • Wheelbase: 180mm

  • Top plate: 1.5mm

  • Mid plate: 2.0mm

  • Bottom plate: 1.5mm

  • Arm thickness: 3.5mm

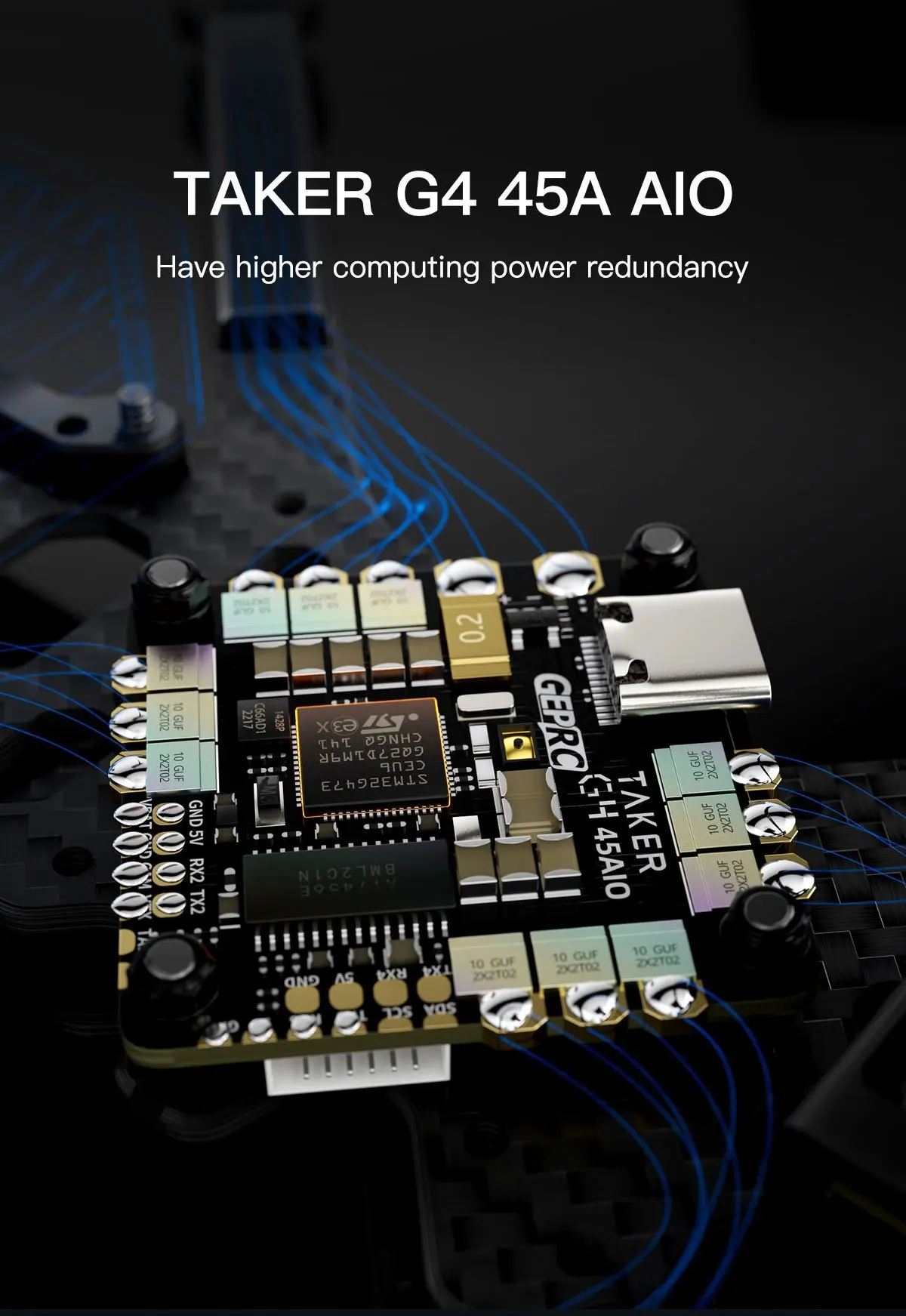

  • FC: Taker G4 45A AIO

  • MCU: STM32G473CEU6

  • Gyro: ICM 42688-P

  • OSD: Betaflight OSD w/AT7456E

  • ESC: 32Bit 45A

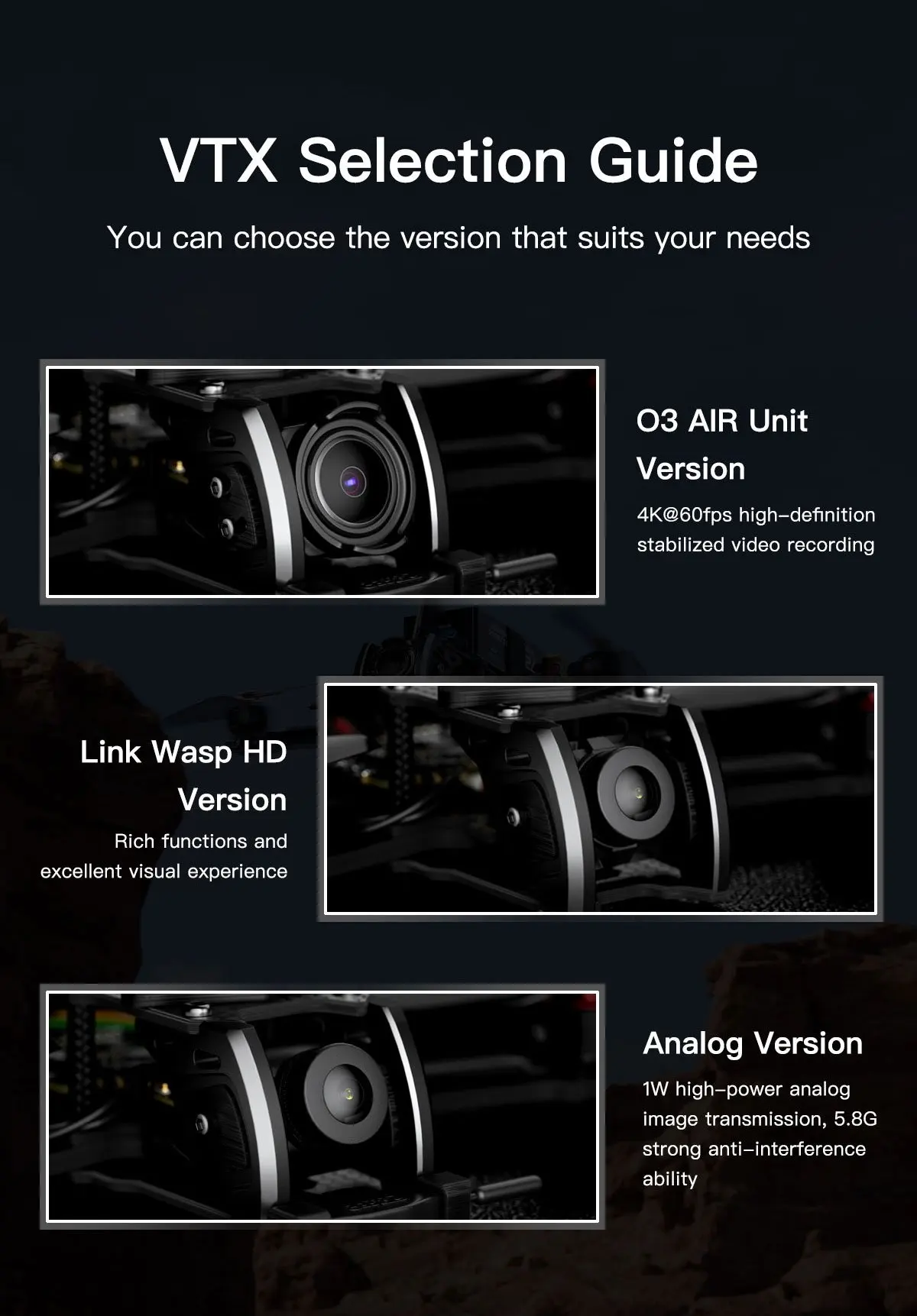

  • VTX: O3 Air Unit

  • Camera: O3 camera

  • Antenna: 5.8G&2.4G

  • Motors: GEP-SPEEDX2 1404 3000KV

  • Connector:XT30

  • Propellers: HQProp T4X2.5Grey (2CW+2CCW)

  • Tern-LR40 O3 PNP version weight: 180g±5g

  • Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX

  • Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah

  • Flight time: 10-25min

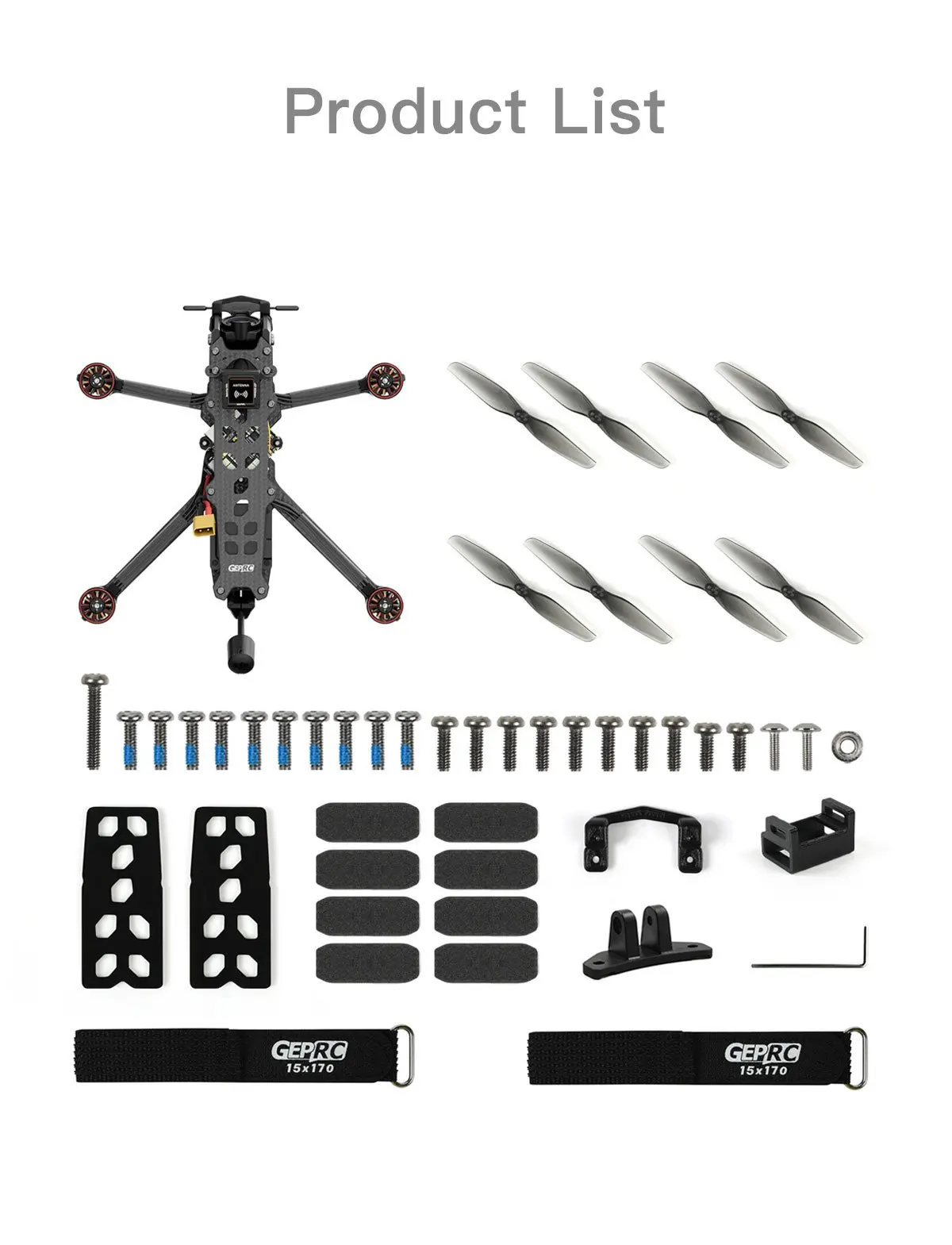

Includes

1 x Tern-LR40

2 x HQProp T4X2.5Grey (2CW+2CCW)

2 x battery anti-slip mat

1 x screw pack

4 x  Battery strap M15*170mm

1 x L-shaped screwdriver 1.5mm

1 x  GoPro camera mount holder

1 x T-type Antenna mount

1 x RC Printed
