Description

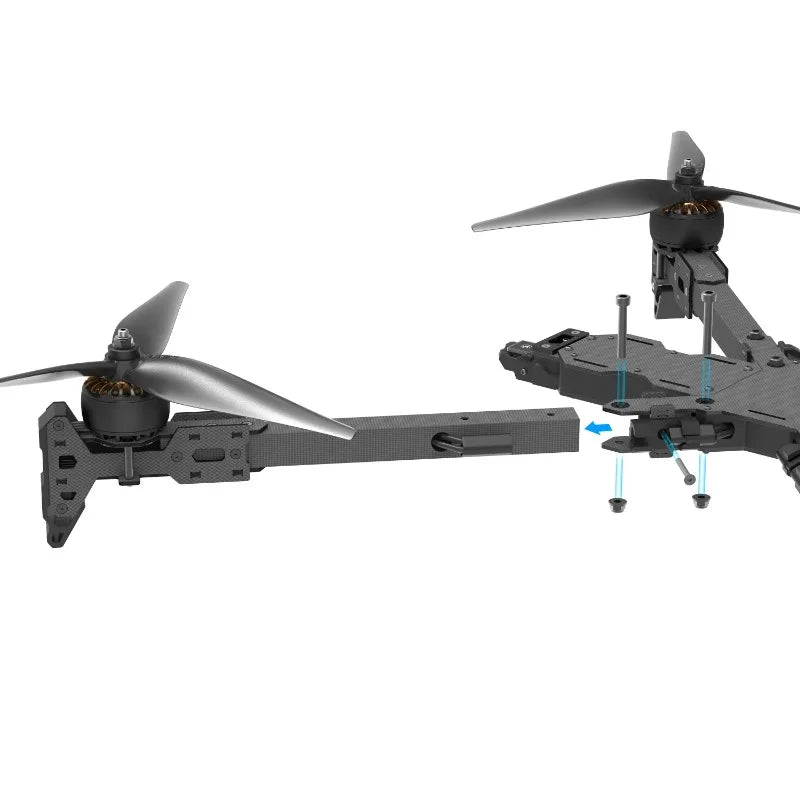

• It's proud to announce the release of the X413 analog BNF, X413 8S Analog is a 13" BNF quadcopter that comes with the BLITZ Whoop  VTX Video Transmission System, and HQ  13" 3-Blade  propellers. The X413 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING 4214 motors, BLITZ F7 Pro Flight Controller, and the BLITZ E80 Pro 4-IN-1 ESC, which make this quad a must-have!

Specifications

• Product Name: X413 Analog 13 inch

• FC: BLITZ F7 Pro Flight Controller

• ESC: BLITZ E80 4-IN-1 Pro ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/ 5.8G  2.5W VTX

• Frame: 599mm wheelbase

• Motor: XING 4214 motors

• Prop: 13X9X3 propellers

• Weight: 2070g (Without Battery)

• Dimensions (L×W×H):425x425x26mm

• Max Speed: 140km/h

• Maximum Takeoff Altitude: 6000 m

• Max Hover Time: Approx. 18 mins (with 8S 5600mAh no load)

• 7mins (With 8S  5600mAh 4KG load)

• 5mins (With 8S 5600mAh 6KG load)

• Max Wind Speed Resistance: Level 8

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Single Antenna

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

BLITZ Whoop 1.2G 1.6W VTX

• Product Name: BLITZ Whoop 1.2G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 7-34V

• Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA

• Transmission fre: 8CH(1080-1360MHz)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

BLITZ Whoop 5.8G 2.5W VTX

• Product Name: BLITZ Whoop 5.8G 2.5W VTX

• Output Power: 0-25-400-1000-2500mw

• Input Volts: 7-34V

• Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

Packing List

• 1 x X413 8S Analog BNF

• 1 x Battery pad

• 1 x Antennas

• 2 x Propellers(Pair)

• 3 x Battery straps

• 1 x Screw Bag

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
