SPECIFICATIONS

Brand Name: ZUIMI

Origin: Mainland China

Hign-concerned Chemical: None

Model Number: CHEETAH-TOP

Gears: 1 Speed

Range per Power: 70-120KM

Frame Material: Reinforced steel

Max Speed: >50km/h, 60KM/H,80KM/H,100KM/H,110KM/H,120KM/H

Voltage: 48V/72V

Power Supply: lithium battery

Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)

Torque: >100 Nm

Charging Time: 5-6H

Motor position: Rear Hub Motor

Battery Position: Integrated Battery

Battery Capacity: 48V29AH/72V26AH/40.6AH/41.6AH, 48V29AH/72V26AH/72V40.6AH/72V41.6AH

Motor Power: 48V3000W/72V3000W/5000W/8000W/12000W/15000W/20000W

Electric Driving System: 1:1 Assist

Frame: Reinforced steel

Front Fork: ZOOM DH680 /KKE / DNM

Rear Shock Absorber: KKE/ DNM rear shock

Brake: Front Rear hydraulic brakes

Riding Distance at one charge: 70-120KM

Factory

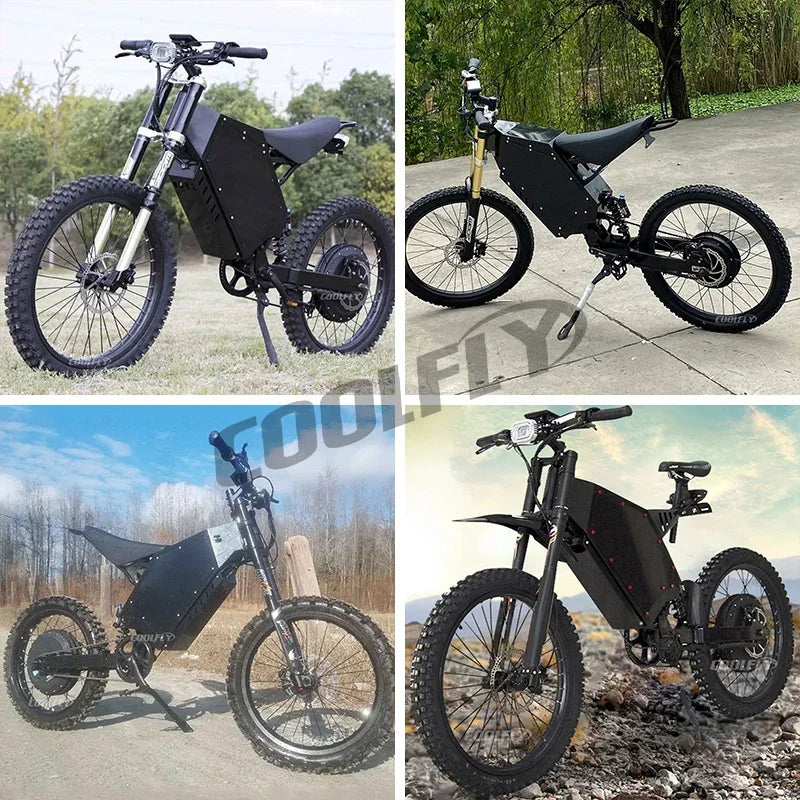

Product Description

Model	CHEETAH-TOP
Model size	1550*350*740
Frame	Reinforced steel

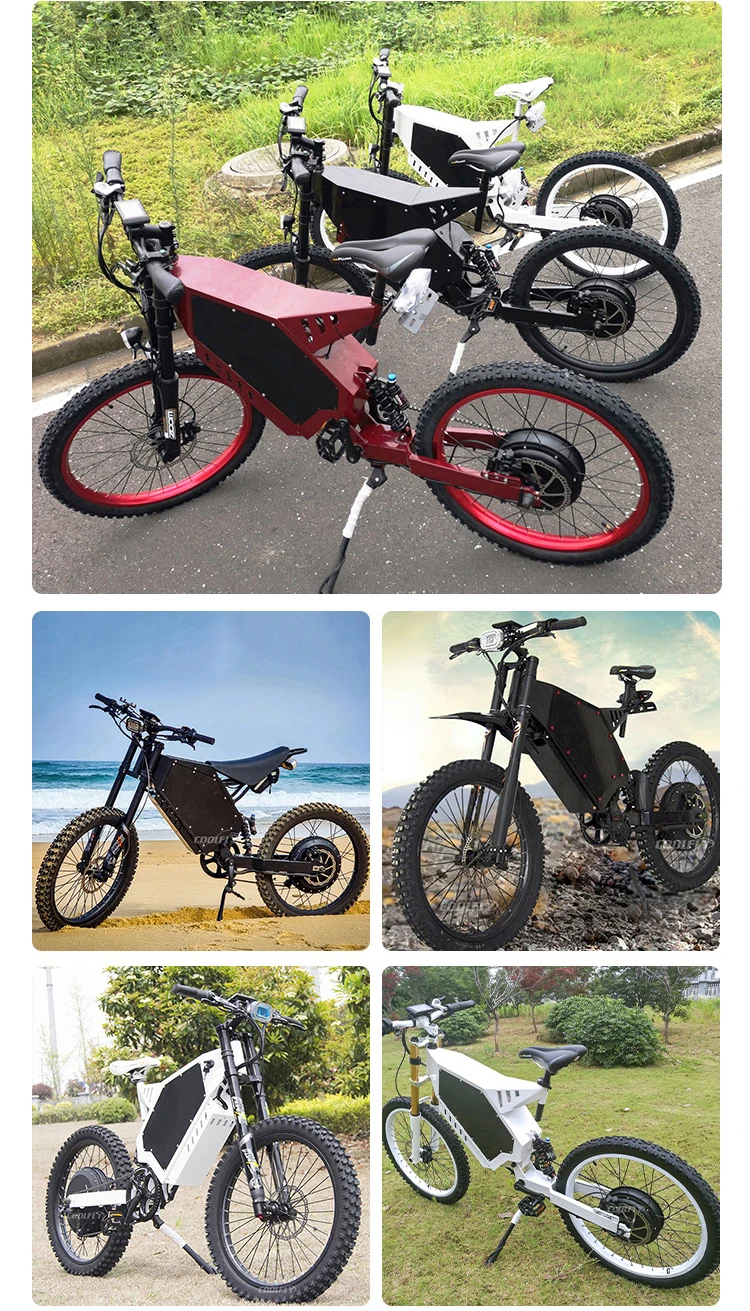

Frame Color	Black/White/Red/Jujube Red/Green

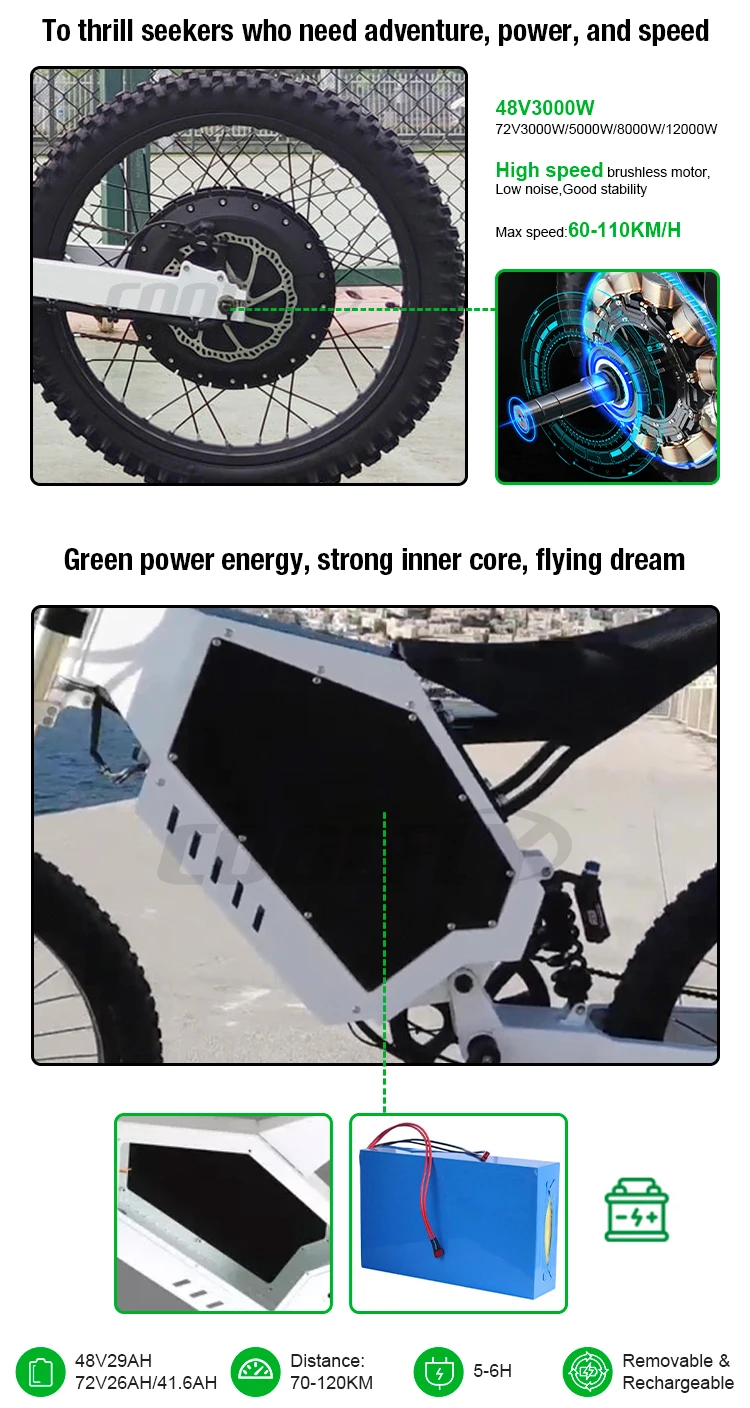

Motor Power	48V3000W/72V3KW/5KW/8KW/12KW/15KW/20KW
Battery Capacity	48V29AH/72V26AH/72V40.6AH72V41.6AH

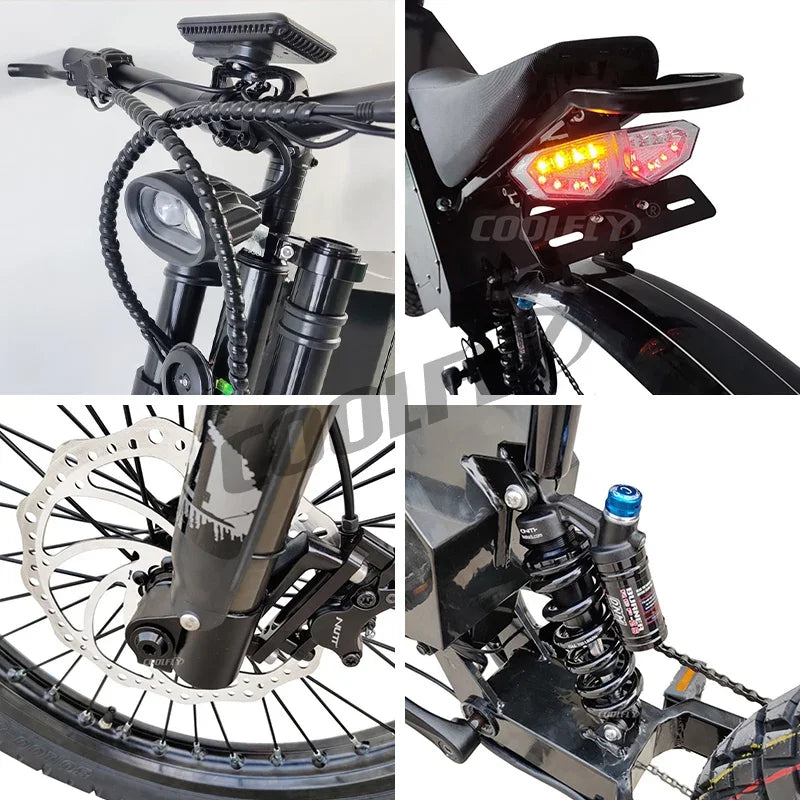

Front Fork	ZOOM DH680 /KKE / DNM
Rear Shock Absorber	KS291/ DNM rear shock
System	Intelligence
Electric Driving System	1:1 Assist (PAS 5 Gears)
Controller Max Current	60A/80A/150A/200A
Power Display	LCD S900 (Super stability)
Wheel Size	26*2.6"bike /19" or 20" motorcycle tires

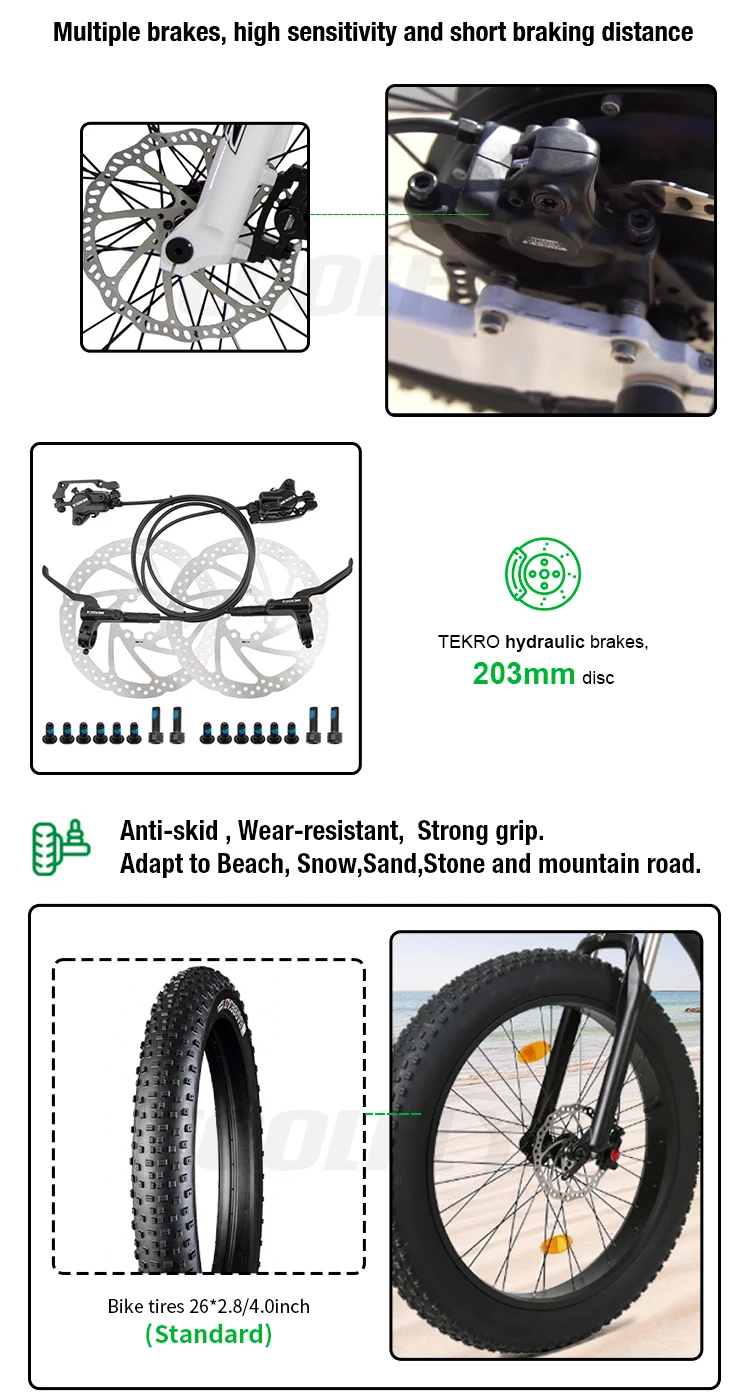

Brake	F/R hydraulic brakes,Brake Disc 203mm
Charger	5A/10A
Charging Time	5-6H
Battery Life Span	≥1000TIMES
Battery weight	26AH(10.2kg),29AH(8kg),41.6ah(14kg)
Chain Transmission	Single Speed
Max Speed	60KM/H,80KM/H,100KM/H,110KM/H,120KM/H
Riding Distance at one charge	70-80KM/ 100-110KM/ 100-120KM
Max Load Capacity	150KG
Max Clirmbing Angle	≤40°
Gross Weight	70-95KG
Packing 1 (one package)	1640*870*300
Packing 2	The following 4 packages
Frame and Rear wheels	1500*700*300(58kg)
Front Fork	930*100*25(6.5kg)
Front wheel	650*650*250(10kg)
Lithium Battery	430*240*345(17kg)
Fit for the height of the crowd	1600-1950
