SPECIFICATIONS

Brand Name: TWITTER

Origin: Mainland China

Voltage: 36V/48V

Foldable: No

Wattage: 251 - 350w

Power Supply: lithium battery

Certification: CE

Range per Power: > 60 km

Style: Luxury Type

Model Number: EC1

Motor: Brushless

Rated Passenger Capacity: One Seat

Wheel Size: 27.5*16cm

Max Speed: 30-50km/h

Frame Material: Aluminum Alloy

Place of Origin: Guangdong, China

Brand Name: Twitter

Model Number: EC1 NX11+M410+36V16A

Gears: 11S

Range per Power: > 60 km

Frame Material: Aluminum Alloy

Wheel Size: 27.5

Max Speed: 30-50Km/h

Voltage: 36V

Power Supply: Li-ion Battery

Braking System: Disc Brake

Torque: 80-90 Nm

Charging Time: >3 hours

Motor position: Central Motor

Battery Position: Down Tube

Battery Capacity: 13.4 Ah

Smart Type: Sensor, Electronic

Derailleur Lever: NX-11S

Rear Derailleur: NX-11S

Cranksets: Matching with Mid Motor, 38T

Cassettes: SUNSHINE-11S,11-42T

Chain: SUMC-11S

Brake: MT200 hydraulic disc brake,180/180mm

Battery: 18650 Li-ion 576Wh, 36V16A

Charger: 2A, DC2.1

quality: 5 Stars

certification: CE CCC ISO9001

Products Description

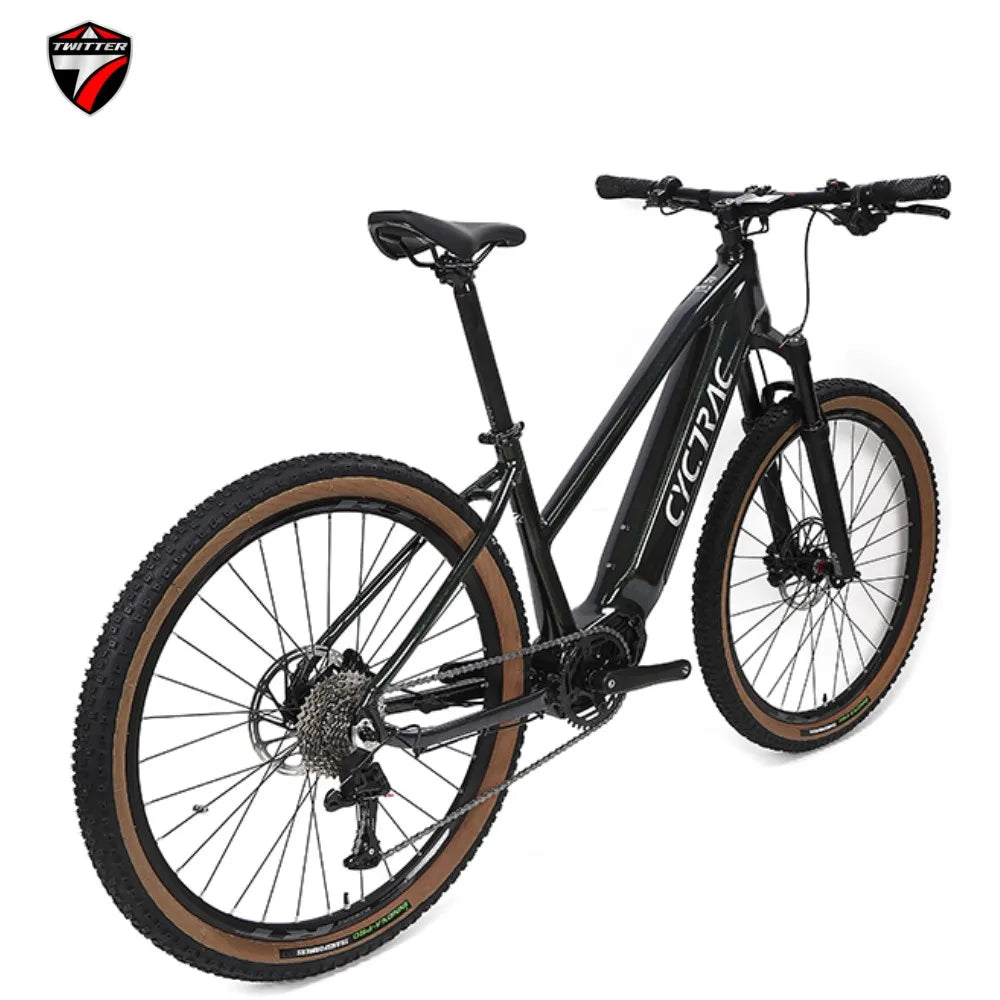

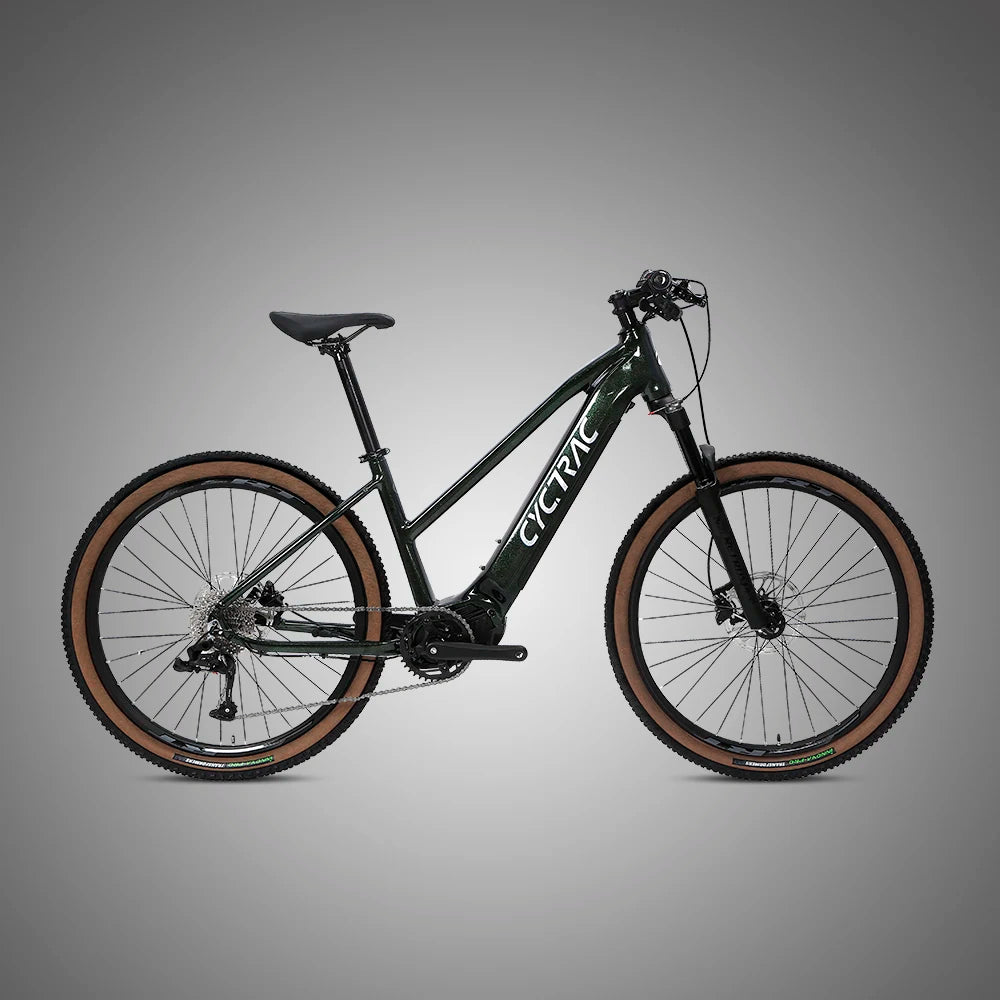

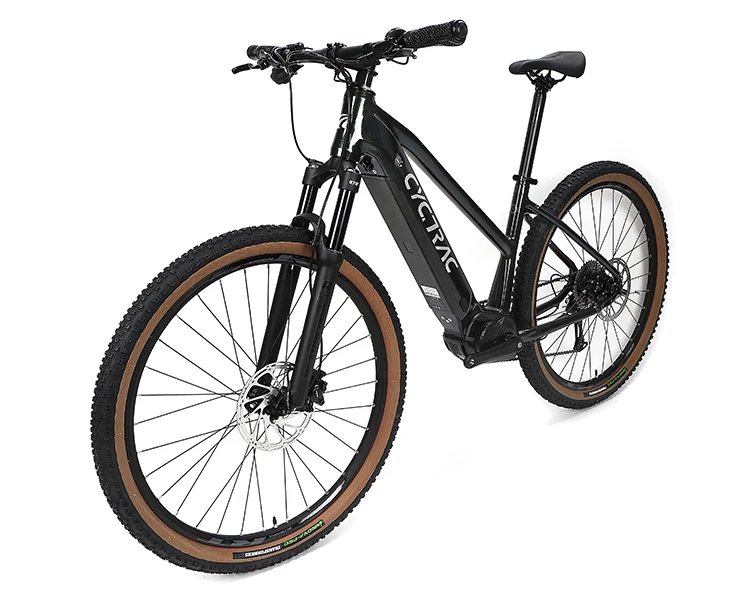

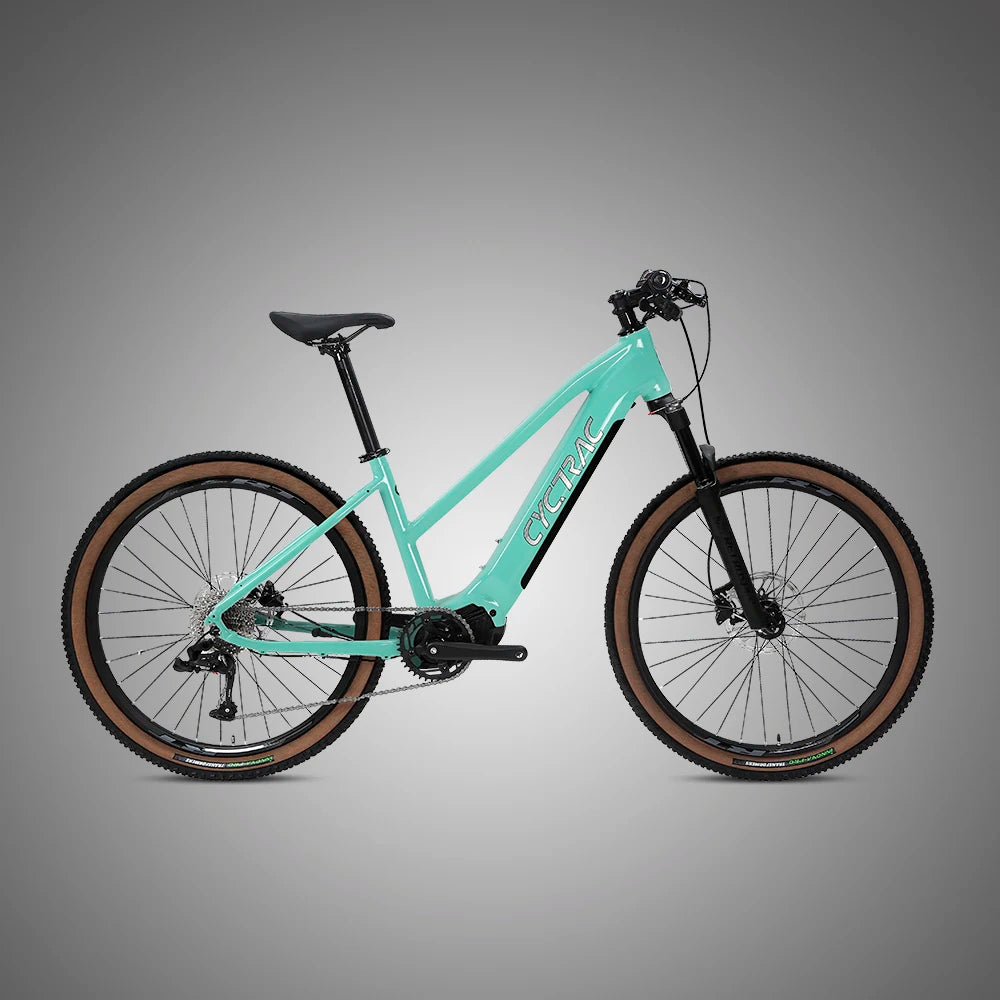

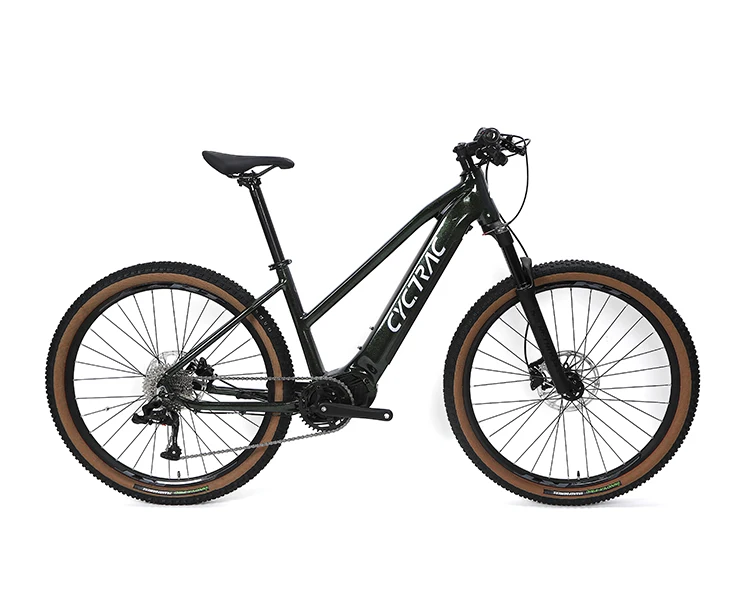

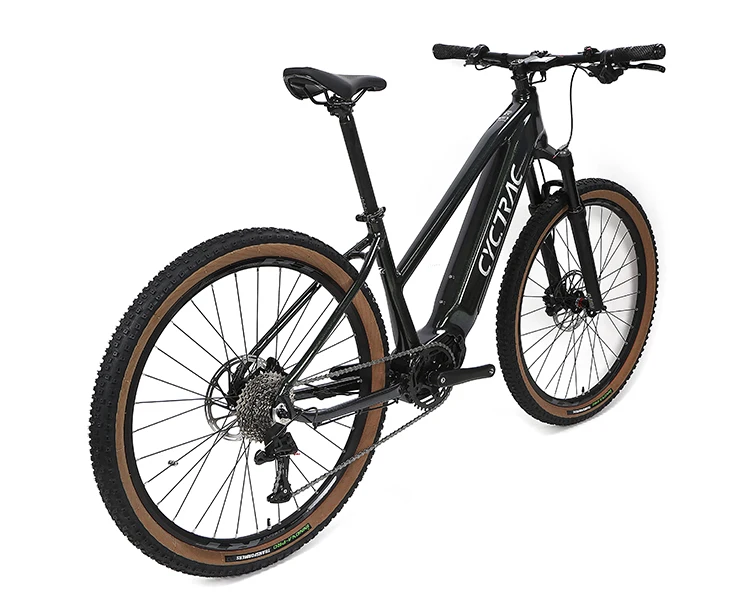

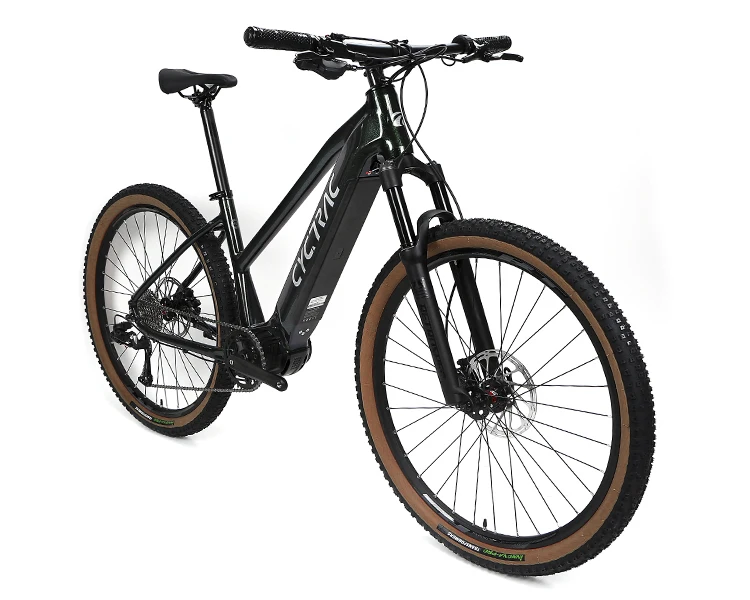

Bike Model	EC1
ConfRev	NX11+M410+36V16A
Frame Size	27.5×16"

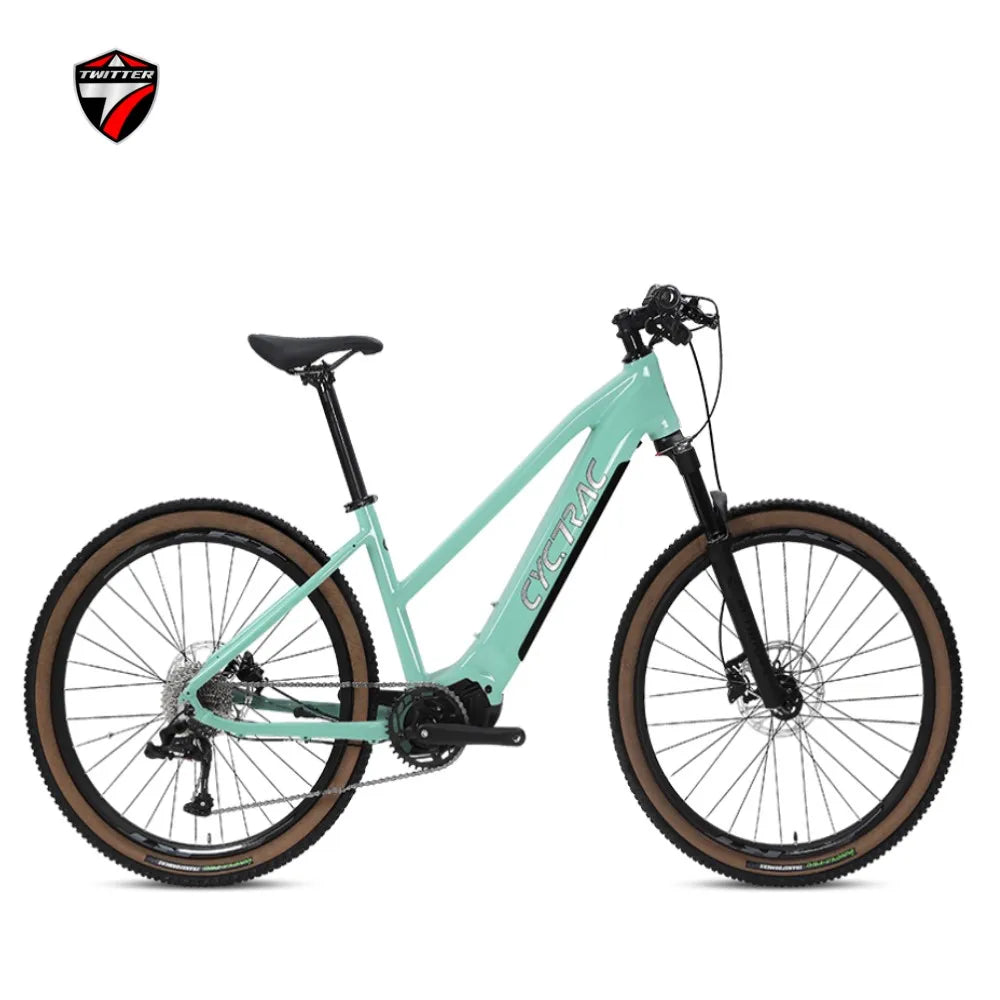

Bike Color	DarkGreen / LightBlue

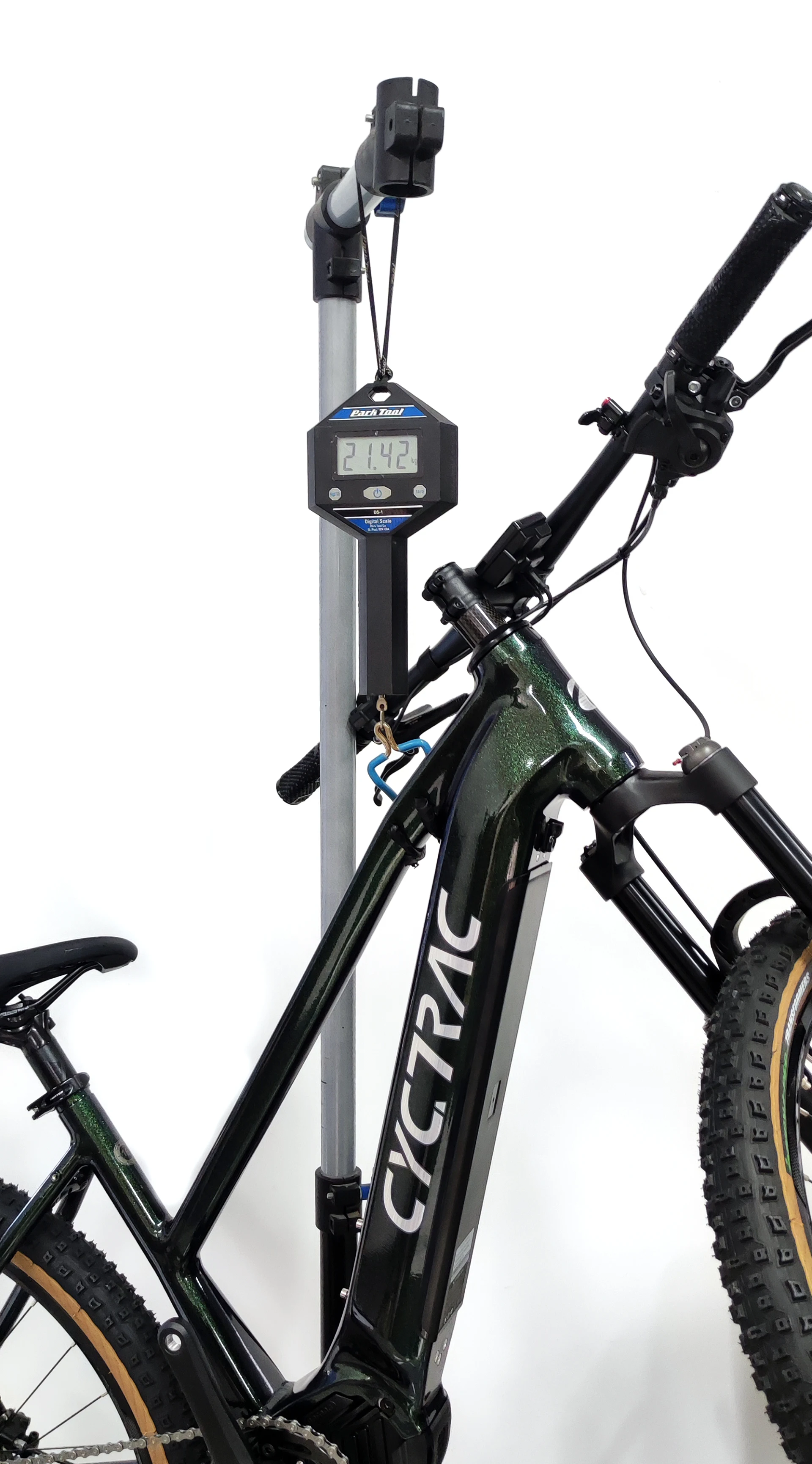

Net Weight	21.4KG
Frame	CYCTRAC, EC1, Alu alloy AL6061,Flat weld&Smooth,Inner cables, Gloss+UV laser decals
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR

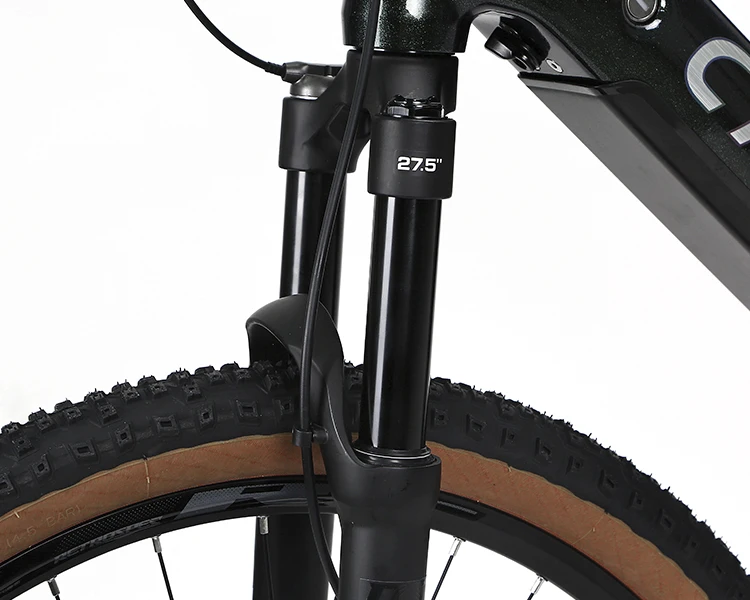

Fork	RS, MgAl alloy, Air suspension, Remote
Head Sets	Alu alloy CNC with sealed Bearings 52*52mm

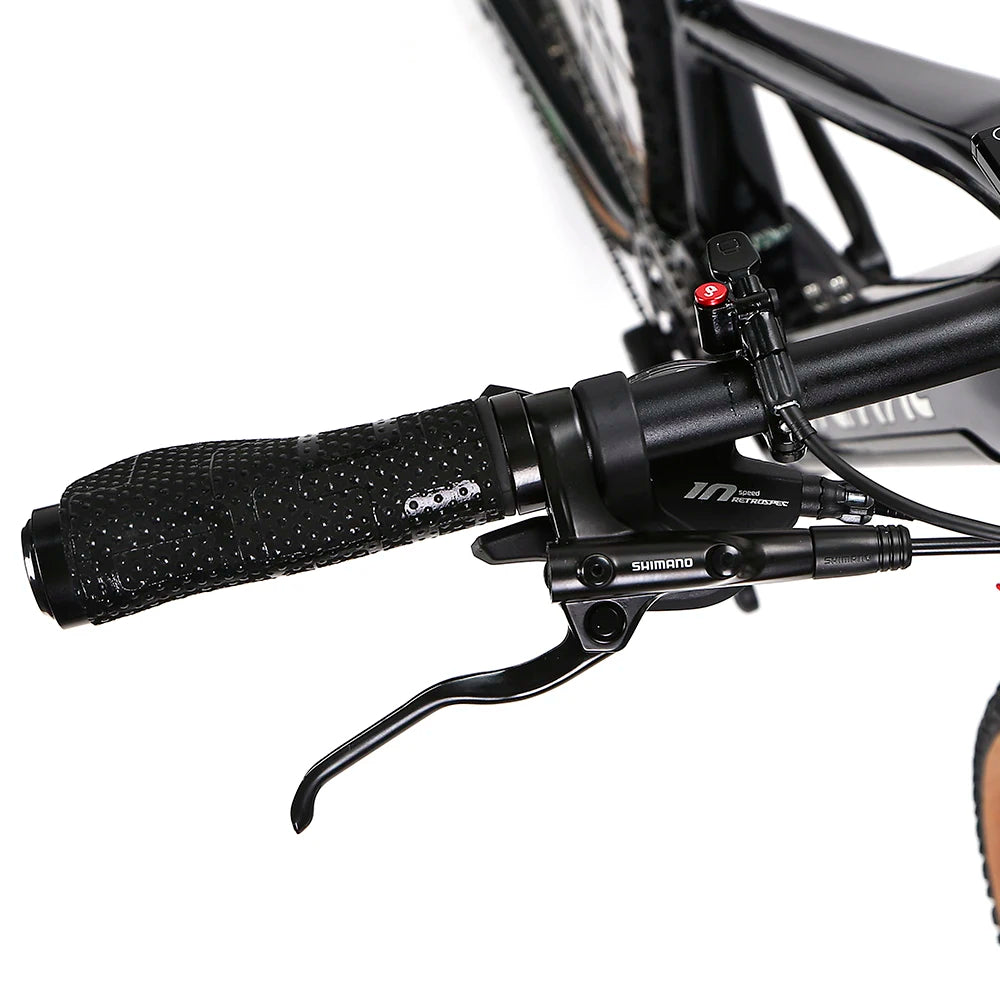

Derailleur Lever	SRAM NX-11S

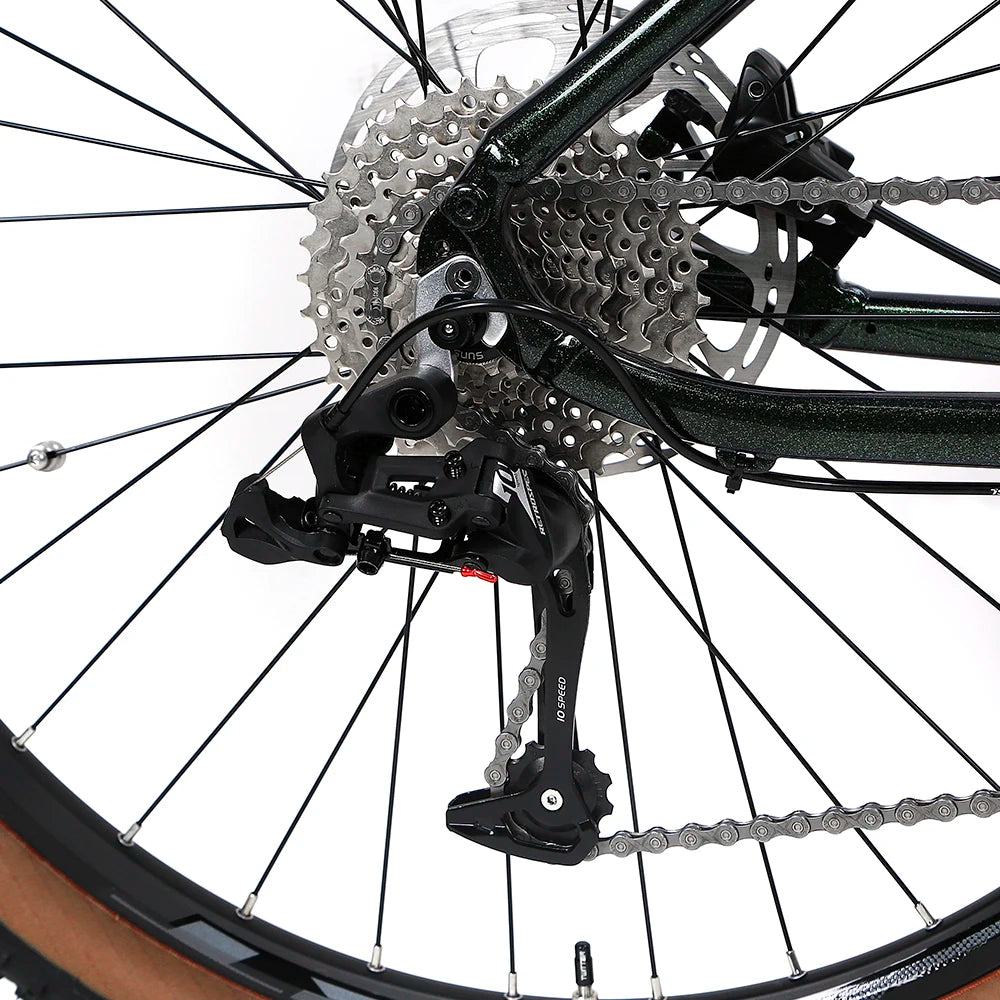

Rear Derailleur	SRAM NX-11S

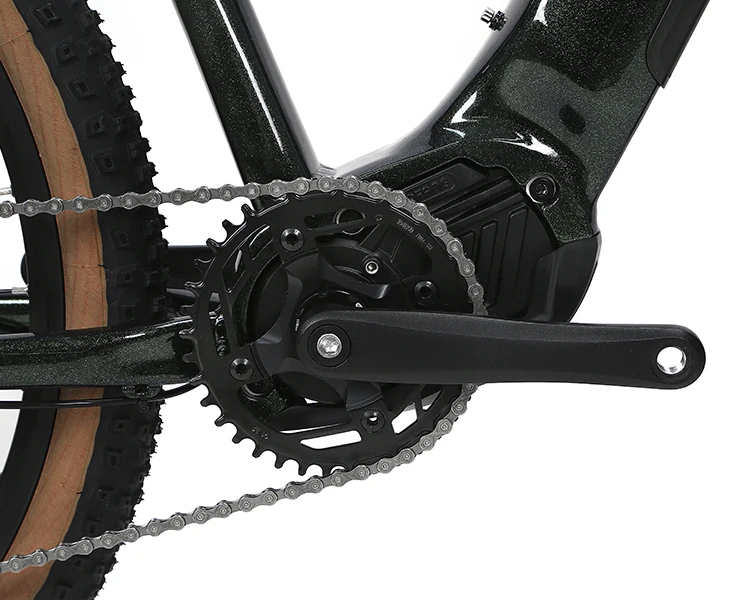

Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-11S,11-42T
Chain	SUMC-11S

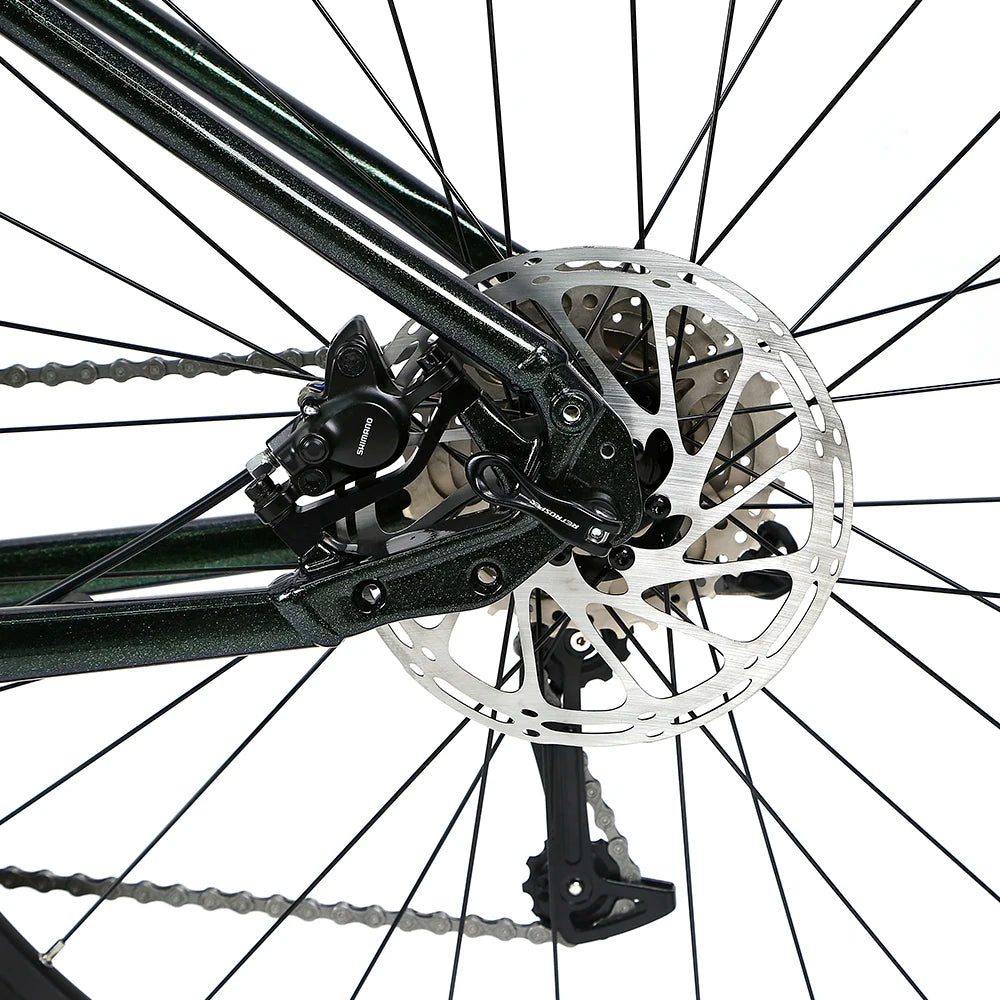

Brake	SHIMANO MT200 hydraulic disc brake,180/180mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G

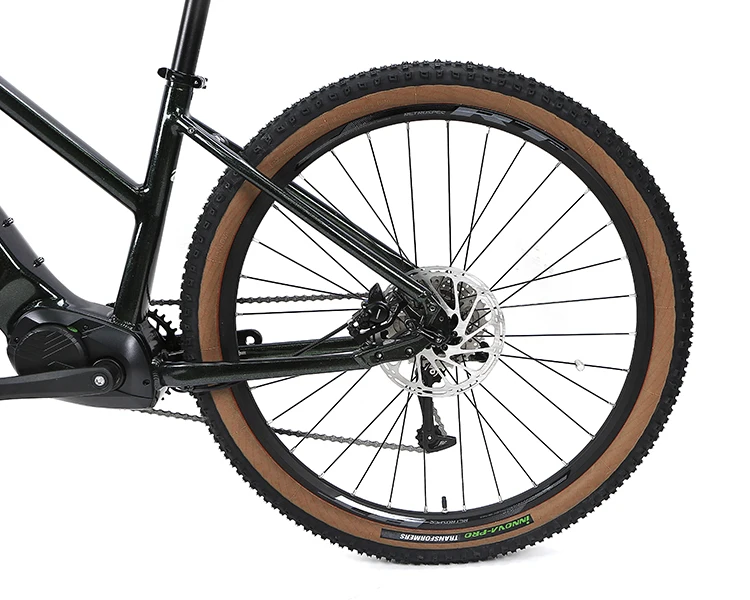

Tire	INNOVA-PRO, CROSS FIT, Skin-color edge, 27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	RS, Comfortable and Thickened for MTB
Pedals	RS, Alu alloy CNC with Bearings for MTB

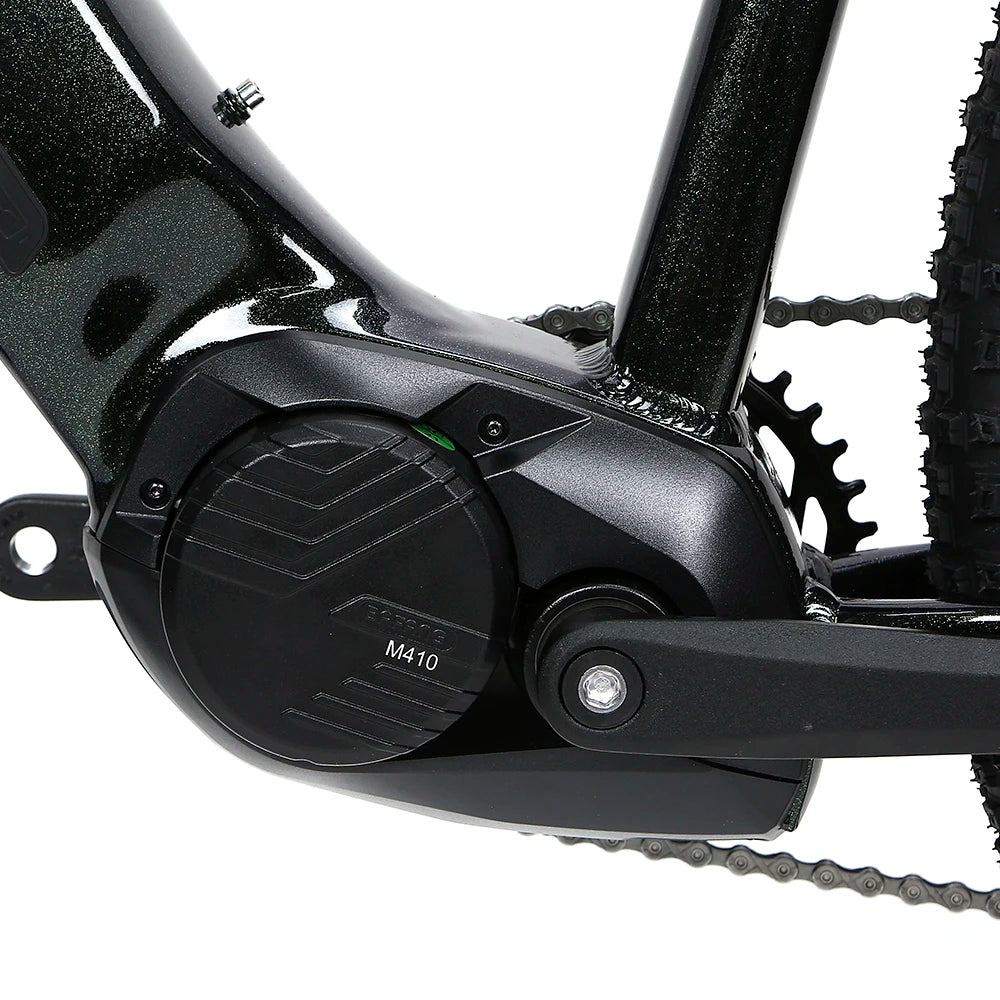

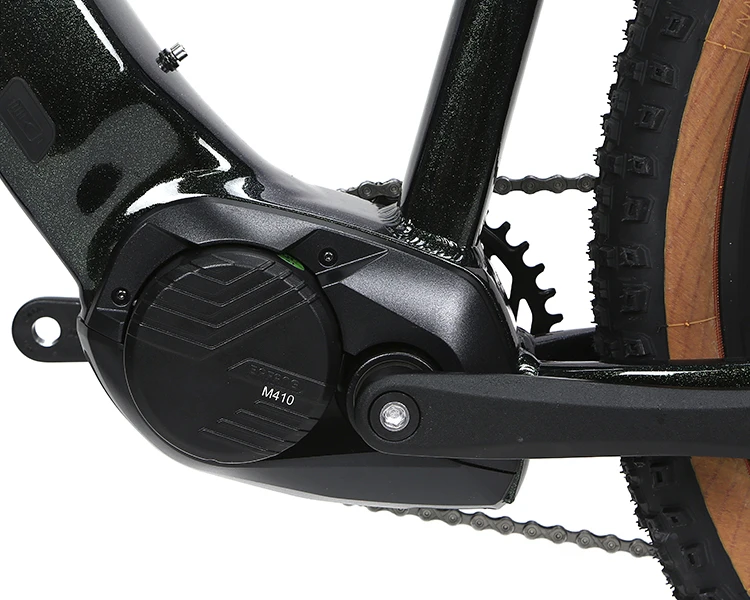

Motor System	Bafang Mid, M410, 36V250W
Max Torque	80 N.m (Peak 100N.m)
Speed Limit	25KMh (max 32KMh)
Pedal Sensor	Torque+Cadence

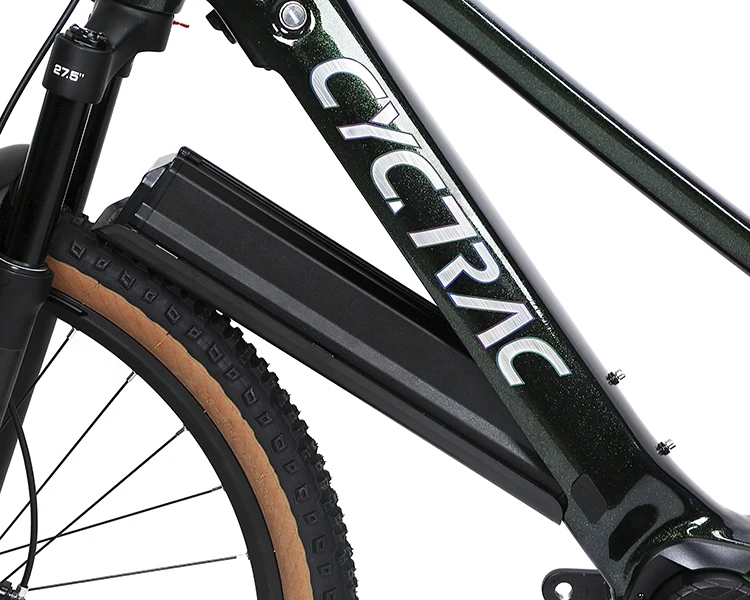

Battery	18650 Li-ion 468Wh, 36V13A
Endurance	100-120KM (pedal assist)
Charging Time	6-7 Hours
Charger	2A, DC2.1

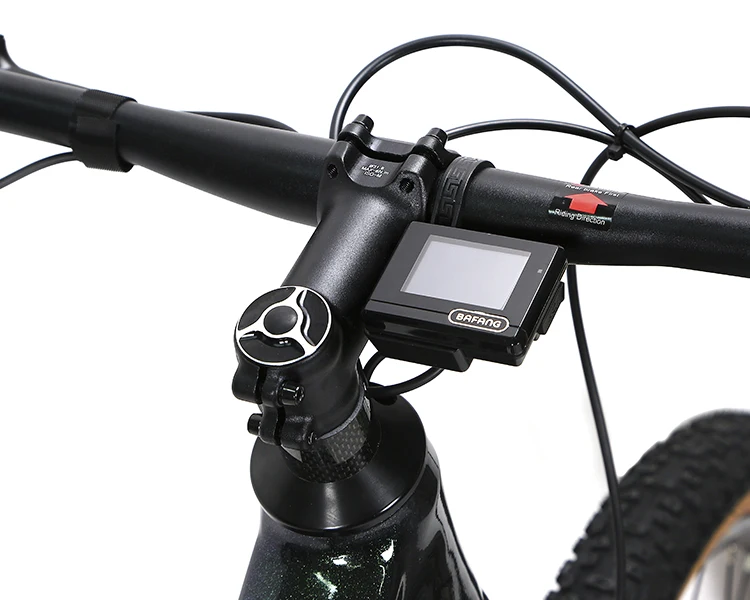

HMI	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5
Max Load	150 KG

Product packaging

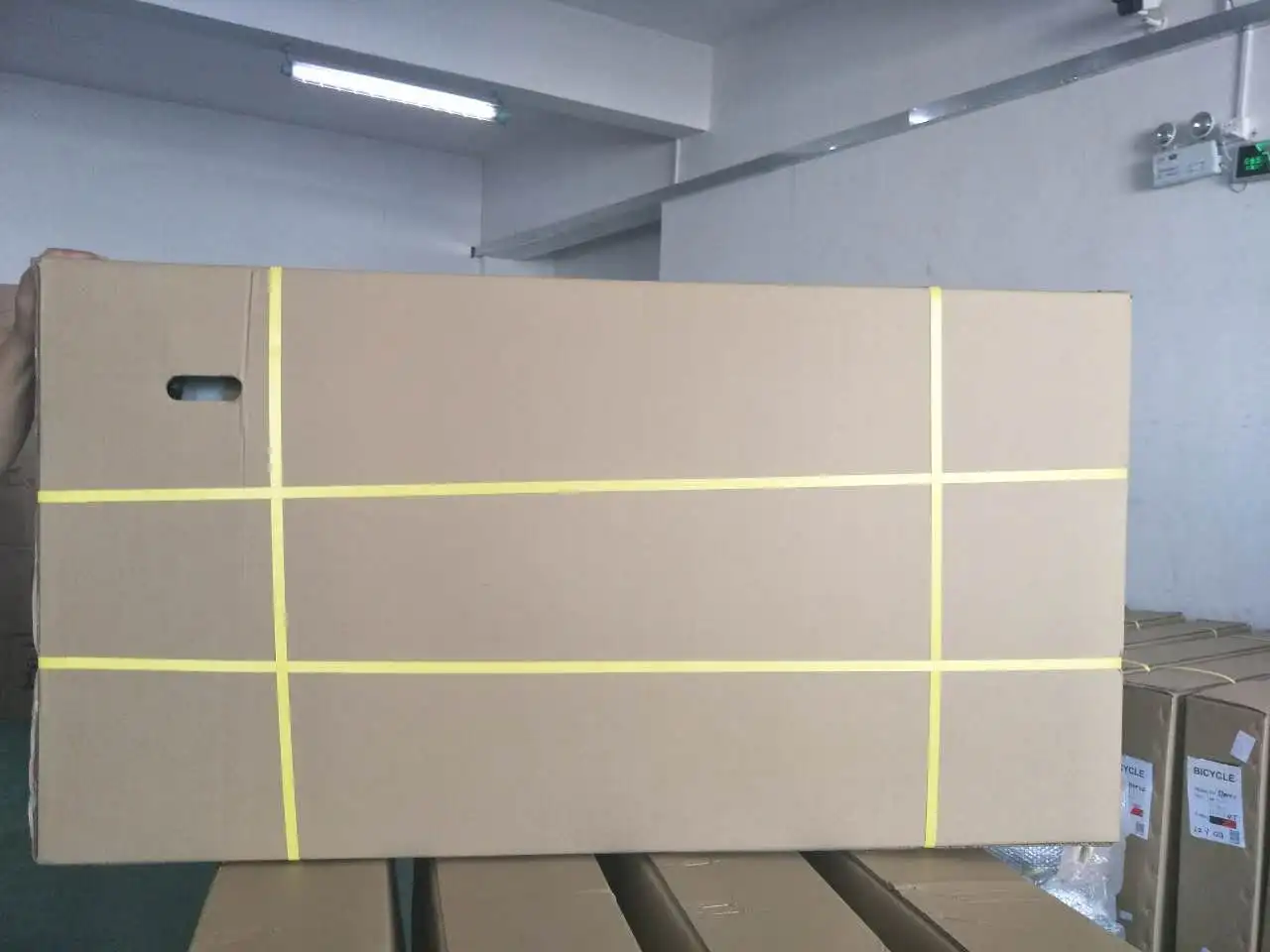

>1.Material:Carton outside with Foam protection inside package. >2.Size:156CM*77CM*28CM >3.The pictures below are just a way of showing the packaging and do not represent the actual product.

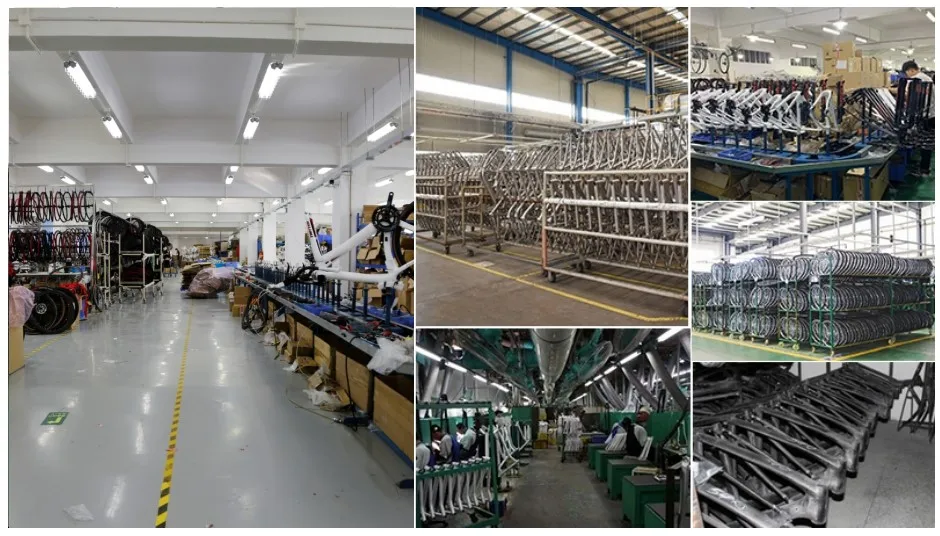

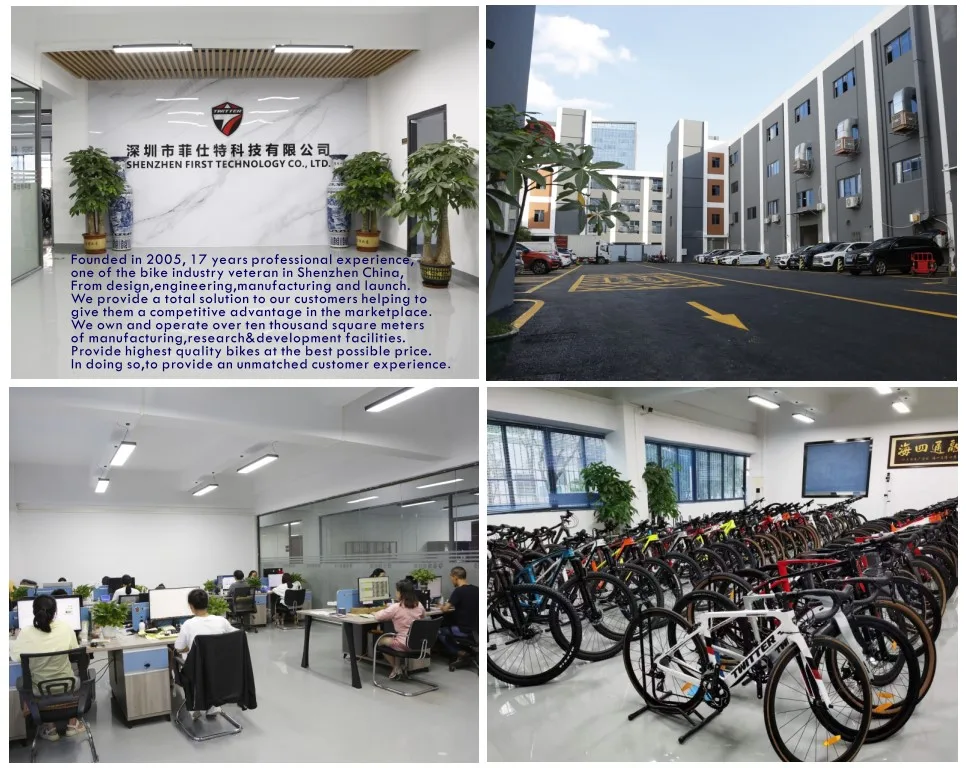

Company Profile

Customer Photos

Our Services & Strength

>1.Bicycle frame made of high quality Carbon Fiber material.All carbon bikes used toray carbon T800/T900/T1000 material with crafted EPS technology. >2.We can offer very good quality with nice price.The parts which have high requirement about the size will be precisely machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement.

Certifications



Our Advantages

FAQ

>1. Q: Can I get some samples? A: We are honored to offer you sample for quality check. >2. Q: Can I mix different models? A: Yes,different models can be mixed . >3. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc. >4.Q: If you want to know more about us pls contact me directly.^_^ Whatsapp/Wechat:+86 19832664352
